Volkswagen Golf Service & Repair Manual: Assembly overview - door handle and door lock

Volkswagen Golf Service & Repair Manual / General body repairs, exterior / Front door, central locking / Door components / Assembly overview - door handle and door lock

Note

Only the left side is shown. The right side is similar.

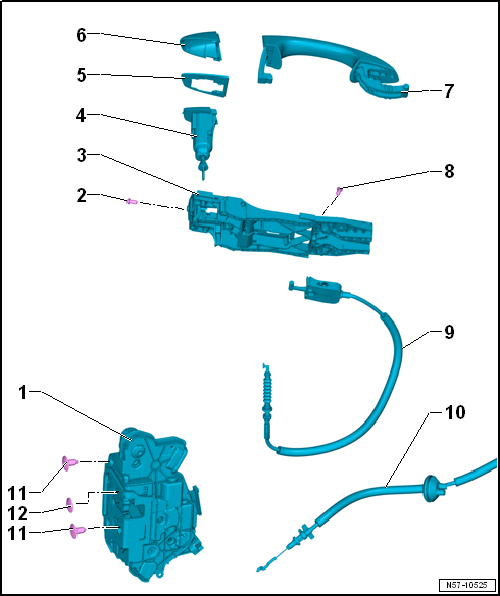

Assembly overview - door handle and door lock

1 -

Door lock

Removing and installing → Chapter

2 -

Bolt

3 Nm
For lock cylinder

3 -	Mounting bracket

Removing and installing → Chapter

4 -	Lock cylinder

Removing and installing → Chapter
Only installed on driver door.

5 -

Base

6 -

Cap

Remove and install for lock cylinder → Chapter
Removing and installing without lock cylinder → Chapter

7 -	Door handle

Removing and installing → Chapter

8 -

Bolt

1.5 Nm
Bearing plate is loosened from door when this bolt is loosened

9 -

Cable

From door lock -1- to mounting bracket -3-

10 -

Cable

From inner door handle to door lock -1-
With grommet to passage on cover

11 -

Bolt

Qty. 2
18 Nm

12 -

Cap
