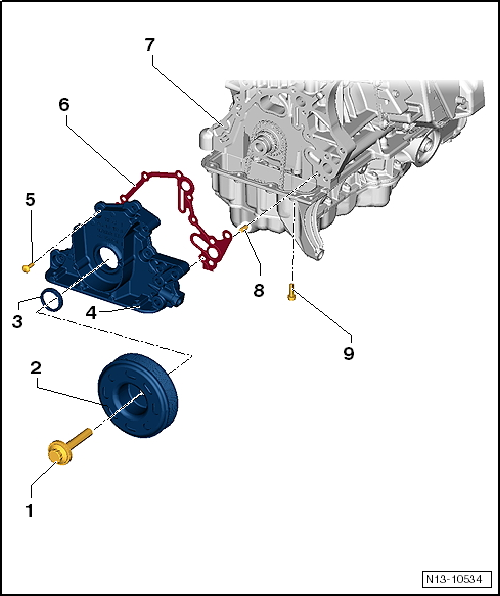

Assembly overview - sealing flange, belt pulley end

1 -

Bolt

Risk of damage to engine caused by incorrect valve timing.Do not turn crankshaft out of TDC position.

Specified torque → Item

2 -	Vibration damper

Removing and installing → Chapter

Risk of damage to engine caused by incorrect valve timing.Do not turn crankshaft out of TDC position.

3 -

Seal

For crankshaft on belt pulley end

Renew → Chapter

Do not oil.

4 -	Sealing flange at belt pulley end

Must seat on dowel pins.

Removing and installing → Chapter

5 -

Bolt

Different thread diameters → Electronic Parts Catalogue

Renew

Specified torque and tightening sequence → Fig.

6 -

Gasket

Renew

7 -	Cylinder block

8 -

Dowel pin

Qty. 2

9 -

Bolt

Renew

Specified torque and tightening sequence → Fig.

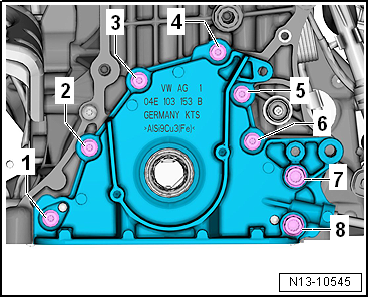

Sealing flange at belt pulley end - Prescribed torque and tightening sequence

Note

Renew bolts that are tightened with specified tightening angle.

–	Tighten bolts in stages:

Assembly overview - sealing flange, belt pulley end

Stage	Bolts	Specified torque/ additional specified angle
1	-1 … 8-	Screw in to contact by hand
2	-1 … 8-	Diagonally, 8 Nm
3	-7, 8-	20 Nm
4	-1 … 8-	Turn 90° further

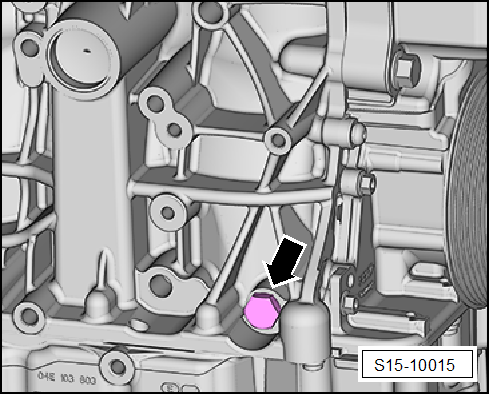

Plug for “TDC” drilling in cylinder block at rear – specified torque

Note

Plug -arrow- with integrated seal.

Renew if damaged.

Assembly overview - sealing flange, belt pulley end

Bolt	Specified torque
-Arrow-	Tighten to 30 Nm
