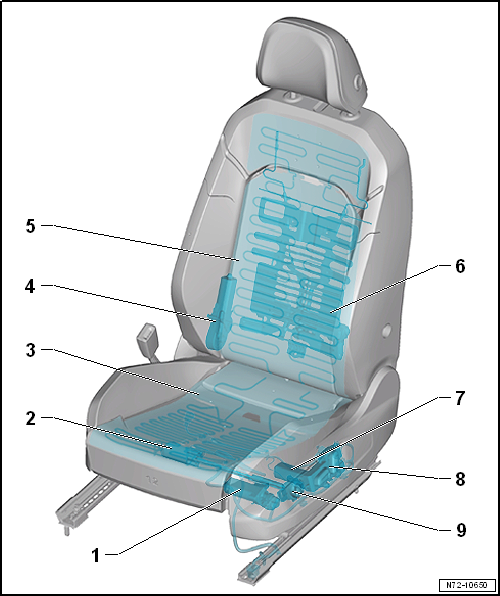

Overview of fitting locations - electrical and electronic components, electrically adjustable seat

1 -	Seat rake adjustment

Driver seat rake adjustment motor -V243
Front passenger seat rake adjustment motor -V244-
Assembly overview → Anchor
Removing and installing → Chapter

2 -	Seat longitudinal adjuster

Driver seat longitudinal adjustment motor -V28
Front passenger seat longitudinal adjustment motor -V31
Removing and installing → Chapter

3 -	Seat heating element

Heated seat cushion for driver seat -Z6
Heated seat cushion for front passenger seat -Z8
Depends on equipment
Removing and installing → Chapter

4 -	Backrest adjuster

Driver seat backrest adjustment motor -V45
Front passenger seat backrest adjustment motor -V46
Removing and installing → Chapter

5 -	Backrest heating element

Heated backrest for driver seat -Z7-
Heated backrest for front passenger seat -Z9
Depends on equipment
Removing and installing → Chapter

6 -	Lumbar support

Driver seat lumbar support longitudinal adjustment motor -V125
Driver seat lumbar support height adjustment motor -V129
Front passenger seat lumbar support longitudinal adjustment motor -V126
Front passenger seat lumbar support height adjustment motor -V130
Assembly overview → Anchor
Removing and installing → Chapter

7 -	Seat height adjuster

Driver seat height adjustment motor -V138
Front passenger seat height adjustment motor -V246
Assembly overview → Anchor.
Removing and installing → Chapter

8 -	Seat adjustment operating unit

Driver seat adjustment operating unit -E470
Front passenger seat adjustment operating unit -E471
Removing and installing → Chapter

9 -	Lumbar support adjustment switch

Driver seat lumbar support adjustment switch -E176
Front passenger seat lumbar support adjustment switch -E177
Removing and installing → Chapter
Removing and installing lumbar support → Chapter
