Volkswagen Golf Service & Repair Manual: Removing and installing knock sensor 1 -G61

Volkswagen Golf Service & Repair Manual / 4- cylinder injection engine(1.4 1 direct inction. turbocharger) / Ignition system, glow plug system / Removing and installing ignition coils with output stage / Removing and installing knock sensor 1 -G61

Removing

–	Remove air conditioner compressor from bracket and tie up → Heating, air conditioning; Rep. gr.87.

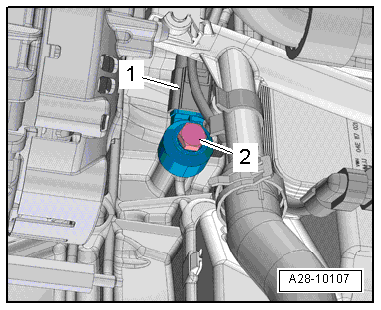

–	Disconnect electrical connector -1-.

–	Unscrew bolt -2- and remove knock sensor 1 -G61-.

Installing

Installation is carried out in the reverse order; note the following:

–	Install air conditioner compressor → Heating, air conditioning; Rep. gr.87.

Specified torques

→ Chapter „Assembly overview - ignition system“
