Volkswagen Golf Service & Repair Manual: Wheel change, wheel installation
| – |
Preserving wheel centring seat
→ Chapter. |
| 1 - |
When fitting the wheel, pull in all wheel bolts uniformly by
hand. |
| 2 - |
Tighten wheel bolts in diagonal sequence to 30 Nm. |
| 3 - |
Lower vehicle onto floor. Use torque wrench to firmly
tighten wheel bolts diagonally to specified torque
→ Chapter. |
WARNING

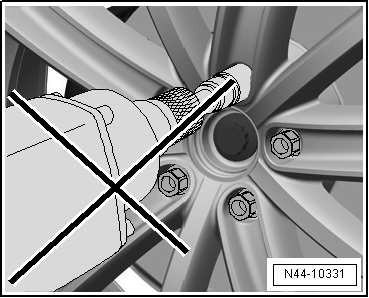

| Do not use an impact screwdriver to screw in the
bolts. |
|
|
|
|
WARNING
Perform the checks and follow the instructions
listed below. This is important to ensure that the wheel
bo ...
Caution
Adherence to position of anti-theft wheel bolts to
tyre valve on steel wheels is vital.
...
