Volkswagen Golf Service & Repair Manual: Adjusting toe on rear axle, multi-link suspension

Special tools and workshop equipment required

Torque wrench -V.A.G 1332-


Adjusting toe on rear axle, multi-link suspension

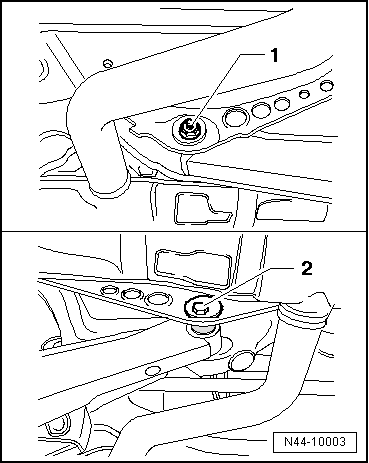

–  Loosen nut -1-.
–  Turn eccentric bolt -2- until specification is attained.
  Note
The maximum adjustment range is 90° to the left or right of centre.
–  Tighten nut -1-.
–  Check toe value again after tightening nut -A- → Chapter „Specified values for wheel alignment“.
Specified torques
→ Chapter „Assembly overview - transverse link“
