Volkswagen Golf Service & Repair Manual: Assembly overview - door components

Volkswagen Golf Service & Repair Manual / General body repairs, exterior / Rear door, sliding door, wing doors, central locking / Door components / Assembly overview - door components

Note

Only the left side is shown. The right side is similar.

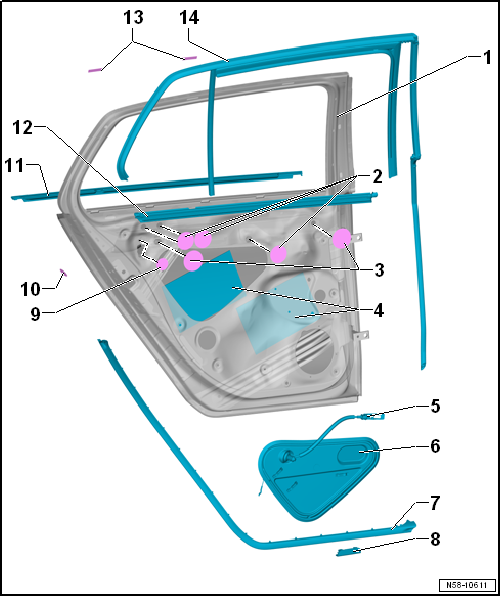

Assembly overview - door components

1 -

Rear door

Removing and installing → Chapter
Adjusting → Chapter

2 -

Sticker

Qty. 3
Diameter 28 mm
If necessary, manufacture using commercially available textile adhesive tape

3 -

Sticker

Qty. 2
Diameter 32 mm
If necessary, manufacture using commercially available textile adhesive tape.

4 -	Insulation

Self-adhesive
Installing

–	If necessary, cut to dimension, 200 mm x 100 mm. Position as shown in illustration.

–	Warm using hot air blower -V.A.G 1416- and push on to outer door panel with force.

5 -	Bowden cable

6 -	Inner door cover

Removing and installing → Chapter

7 -	Door joint seal

Attached to door with clips

8 -

Bracket

Part of outer door seal

9 -

Sticker

Qty. 1
Diameter 19 mm
If necessary, manufacture using commercially available textile adhesive tape

10 -

Sticker

Qty. 1
Diameter 15 mm.
If necessary, manufacture using commercially available textile adhesive tape

11 -	Outer window slot seal

Removing and installing → Chapter

12 -	Inner window slot seal

Removing and installing → Chapter

13 -

Sticker

Qty. 2
15 mm x 50 mm
If necessary, manufacture using commercially available textile adhesive tape.

14 -	Window channel

Removing and installing → Chapter.

Door components

...

Assembly overview - window regulator

1 - Front door 2 - Rear window regulator motor -V26/V27- The door control unit is installed in door separated from window regulator mo ...
