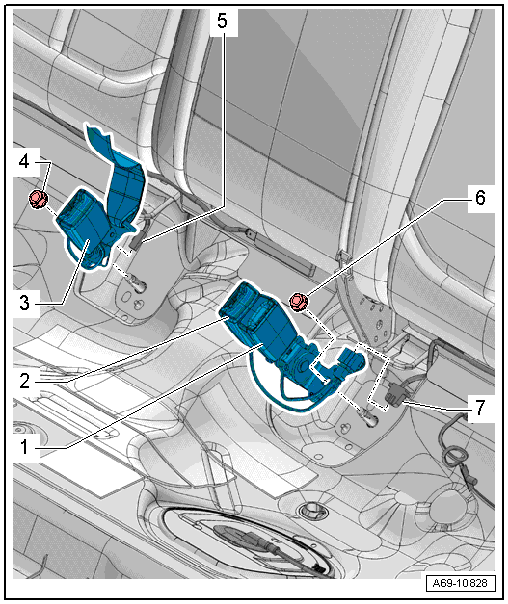

Assembly overview - rear belt buckle

1 -	Left double belt buckle

With rear belt switch, driver side -E258-
Removing and installing → Chapter
Always renew after belt tensioner has deployed with seat belt fastened
Press on belt buckle when bolting it on
Must rest flat against contact surface

2 -	Centre belt buckle

With rear centre belt switch -E609-
Removing and installing → Chapter
Always renew after belt tensioner has deployed with seat belt fastened
Press on belt buckle when bolting it on
Must rest flat against contact surface.

3 -	Right belt buckle with rear centre belt end fitting

With rear belt switch, front passenger side -E259-
Removing and installing → Chapter
Always renew after belt tensioner has deployed with seat belt fastened
Must rest flat against contact surface when tightening nut

4 -

Nut

If removed due to an accident with seat belt fastened, renew bolt
40 Nm

5 -	Electrical connections

For rear belt switch, front passenger side -E259

6 -

Nut

If removed due to an accident with seat belt fastened, renew bolt
40 Nm

7 -	Electrical connections

For rear belt switch, driver side -E258- and rear centre belt switch -E609
