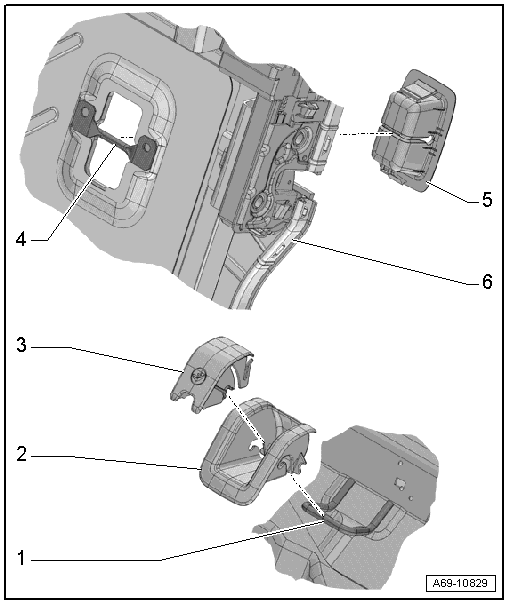

Assembly overview - rear child seat anchors

1 -	ISOFIX child seat anchor

Qty. 4
Welded to underbody

2 -

Guide

For ISOFIX child seat anchor
Qty. 4
Removing and installing → Chapter
Must be seated firmly on child seat anchor

3 -

Lid

For ISOFIX child seat anchor
Qty. 4
Removing and installing → Chapter
Must be seated firmly on child seat anchor

4 -	Top Tether child seat anchor

Qty. 2
Welded to backrest frame

5 -

Cover

For Top Tether child seat anchor
Qty. 2
Removing and installing → Chapter
Attach to child seat anchor and push it in until it audibly engages
Can only be fitted on rear seat backrest in a specific position

6 -	Rear seat backrest

Child seat anchors

...

Removing and installing guide for ISOFIX child seat anchor

Removing – Unclip cover -1- from ISOFIX child seat anchor -arrow- and remove it. ...
