Volkswagen Golf Service & Repair Manual: Assembly overview - rear door trim

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Trim, noise insulation / Rear door trims / Assembly overview - rear door trim

Note

The assembly overview is shown for the rear door trim on driver side. The assembly overview for the front passenger side is analogous.

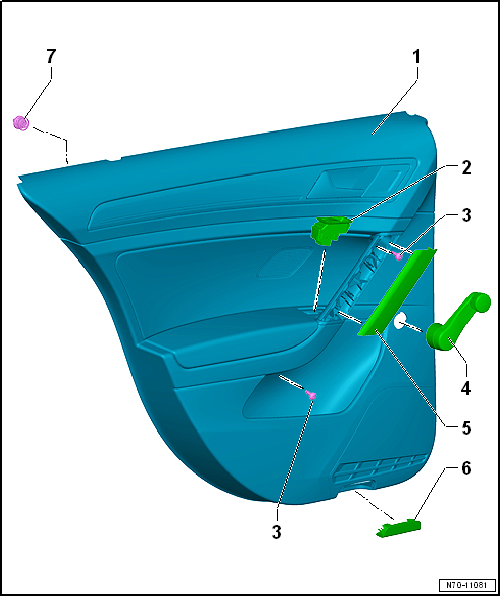

Assembly overview - rear door trim

1 -

Door trim

Removing and installing → Chapter

2 -	Rear driver side window regulator button -E711-

Only for vehicles with window regulator.
Overview of fitting locations → Electrical system; Rep. gr.96

3 -

Bolt

Qty. 2
4.5 Nm

4 -	Window winder

Only for vehicles with manual window regulator
Removing and installing → General body repairs, exterior; Rep. gr.58

5 -	Upper part of handle recess

6 -

Reflector

Overview of fitting locations → Electrical system; Rep. gr.96

7 -

Clip

Qty. 6
Insert into trim
Renew any damaged or deformed clips

Rear door trims

...

Removing and installing rear door trim

Note Removal and installation is described for the rear door trim on driver side. Follow same instructions for the front passenger side as appropriate. ...
