Assembly overview - rear window washer system, Golf

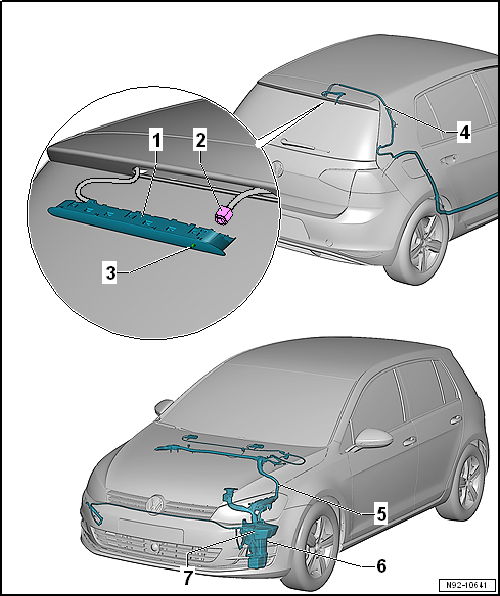

1 -	High-level brake light

2 -	Connection for washer fluid hose

For rear window washer system.

3 -

Spray jet

Removing and installing → Chapter

Adjusting → Chapter

4 -	Water line

Leading to spray jet of rear window washer system; location: right side panel.

5 -	Water line

Leading to spray jet of rear window washer system; location: engine compartment.

6 -	Windscreen and rear window washer pump -V59-

Removing and installing → Chapter

With sealing grommet; renew if damaged.

7 -	Washer fluid reservoir

Removing and installing → Chapter

Rear window washer system

...

Assembly overview - rear window washer system, GTI and GTD

1 - Connection for high-level brake light 2 - Connection for washer fluid hose For rear window washer system. 3 ...
