Note

The illustration shows the sill panel moulding on the left side. The right-hand side is similar (mirror image of left-hand side).

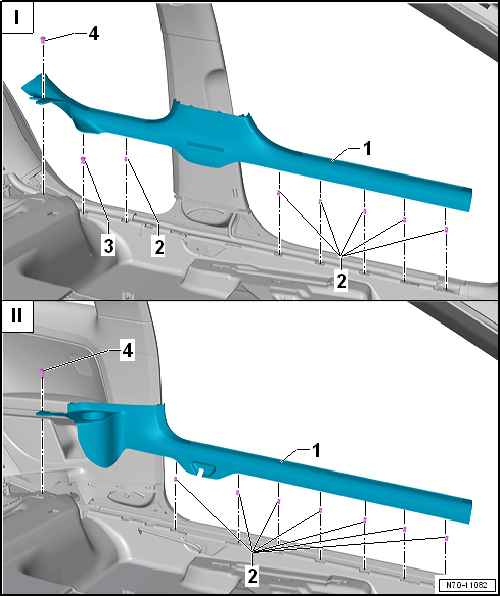

I: sill panel moulding, 4-door model

II: sill panel moulding, 2-door model

Assembly overview - sill panel moulding

1 -	Sill panel strip

Removing and installing → Chapter

2 -	Retaining clip

Insert into sill panel moulding
Remove any retaining clips left in body mountings using removal tool -T40280- and fit them in sill panel moulding for installation.
Renew any damaged or deformed retaining clips

3 -

Bracket

Insert into body

4 -	Spreader clip

Interior trims

...
