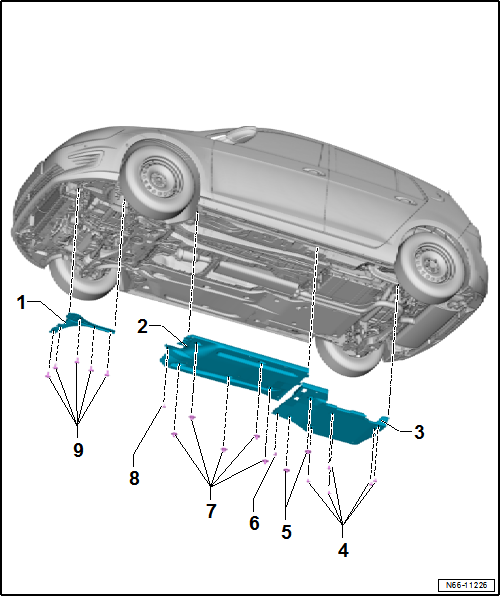

Assembly overview - underbody covers, hybrid vehicles

1 -	Front cover

Left and right

2 -	Underbody cover

Left and right
Removing and installing → Chapter

3 -	Rear underbody cover

4 -

Bolt

For rear underbody cover
Qty. 4 on each side
8 Nm

5 -

Nut

For rear underbody cover
Qty. 2 on each side
20 Nm

6 -	Spreader rivet

7 -

Nut

For underbody cover
With captive
Qty. 5 on each side
2.0 Nm

8 -

Bolt

For underbody cover
Qty. 1 on each side
2 Nm

9 -

Bolt

For front cover
Qty. 5 on left side
Qty. 6 on right side
2 Nm
