Volkswagen Golf Service & Repair Manual: Checking outer constant velocity joint

The joint is to be dismantled to renew the grease if it is heavily soiled, or to check the running surfaces of the balls for wear and damage.
Removing

–  Before dismantling, mark position of ball hub in relation to ball cage and joint body with an electric scriber or oil stone.
–  Swing ball hub and ball cage.

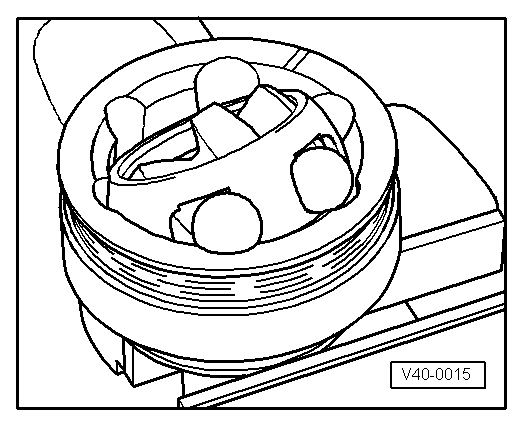

–  Remove balls one at a time.


Checking outer constant velocity joint

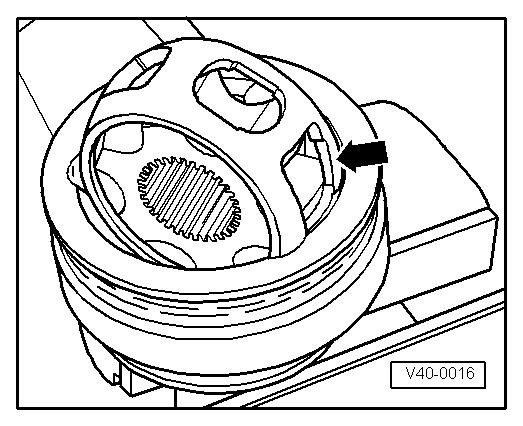

–  Turn cage until the two rectangular windows -arrow- lie on joint body.
–  Take out cage with hub.


Checking outer constant velocity joint

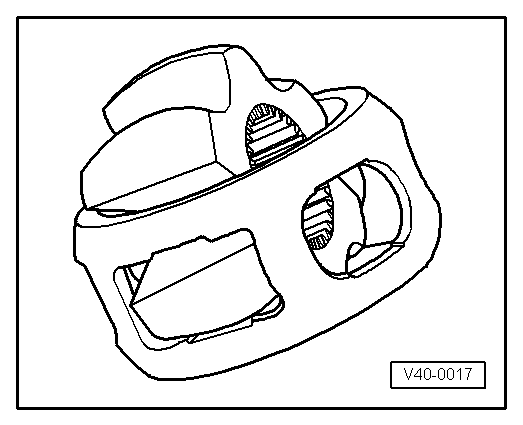

–  Swing segment of hub into square cage window.
–  Tip hub out of cage.
The six balls for each joint belong to a tolerance group. Check stub axle, hub, cage and balls for small indentations (pitting) and traces of seizing. Excessive circumferential backlash in the joint is noticeable during load change jolts. In this case the joint must be renewed. Smoothing and traces of wear of the balls are no reason to change the joint.
Installing
Install in reverse order of removal, observing the following:
–  Pack half of total grease quantity (40 g) into joint body.
–  Fit cage with hub into joint body.
–  Press in opposing balls one after the other; the original position of the hub relative to the cage and joint body must be restored.
–  Fit new retaining ring into hub.
–  Distribute remaining grease in boot.


Checking outer constant velocity joint

Dismantling and assembling drive shaft, triple roller joint AAR3300i
Special tools and workshop equipment required Thrust plate -VW 401- Thrust plate -VW 402- Press tool -VW 408 A- ...

Checking inner constant velocity joint
Removing The joint is to be dismantled when following work is done: Replacement of grease if very contaminated ...
