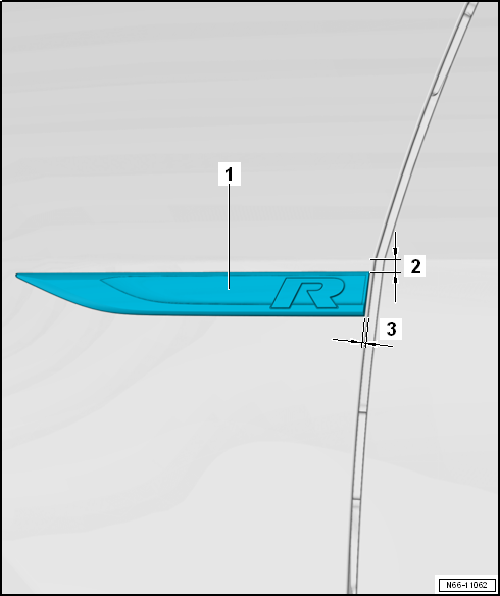

Volkswagen Golf Service & Repair Manual: Dimensions – lettering on wing, “R”
| 1 - | Emblem |
| 2 - | Height dimension |
- 5.0 ± 1 mm, from upper edge of lettering to edge of wing
| 3 - | Horizontal dimension |
- 1.5 ± 1 mm, from outer edge of wing to lettering
Dimensions – lettering on wing
Note
The dimensions shown here for “GTI” as an example are valid for all
emblems.
1 -
Emblem
Variations in appearance possible dependin ...
Removing and installing manufacturer emblem
Note
The emblem cannot be removed without damage.
Removing
–
Use a screwdriver -3- to carefully
lever manufacturer emblem -1- out of
...
