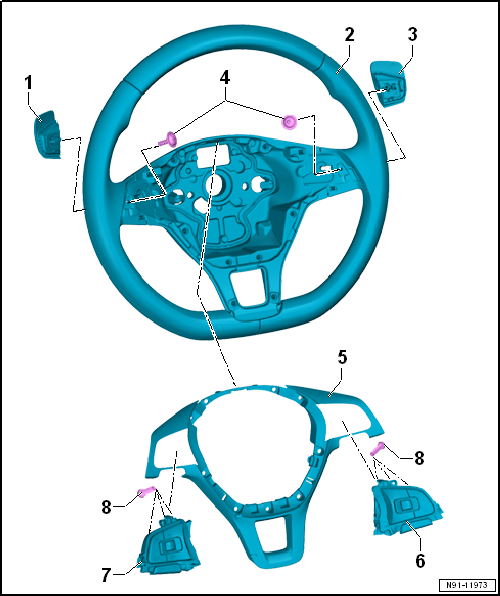

Overview - multifunction steering wheel

1 -	Tiptronic switch in steering wheel to shift down -E439-

Removing and installing → Chapter.

2 -	3-spoke steering wheel

3 -	Tiptronic switch in steering wheel to shift up -E438-

Removing and installing → Chapter.

4 -

Bolt

1.2 Nm

5 -

Trim

6 -	Multifunction buttons on right in steering wheel -E441-

Removing and installing → Chapter.

7 -	Multifunction buttons on left in steering wheel -E440-

Removing and installing → Chapter.

8 -

Bolt

Qty. 6
