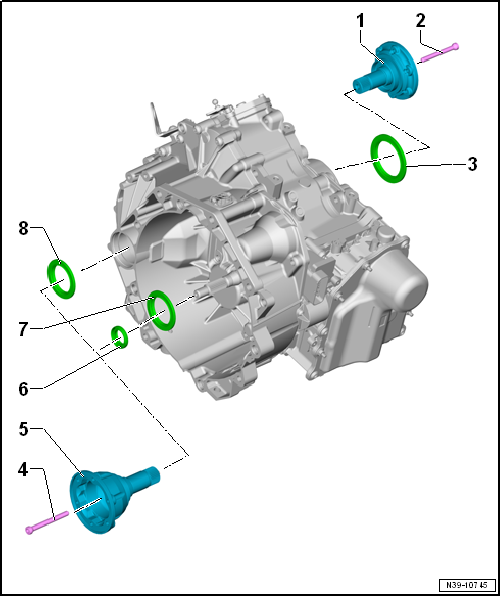

Volkswagen Golf Service & Repair Manual: Overview of fitting locations - seals
| 1 - | Left flange shaft |
| 2 - | Bolt |
| Always renew after removing. |
| 30 Nm |
| 3 - | Seal, left |
| For left flange shaft |
| Renewing → Chapter |
| 4 - | Bolt |
| Always renew after removing. |
| 30 Nm |
| 5 - | Right flange shaft or stub shaft |
| 6 - | Oil seal for inner input shaft |
| Renewing → Chapter |
| 7 - | Input shaft seal |
| Renewing → Chapter |
| 8 - | Seal, right |
| For right flange shaft |
| Renewing → Chapter |
