Note

Note safety precautions → Chapter.

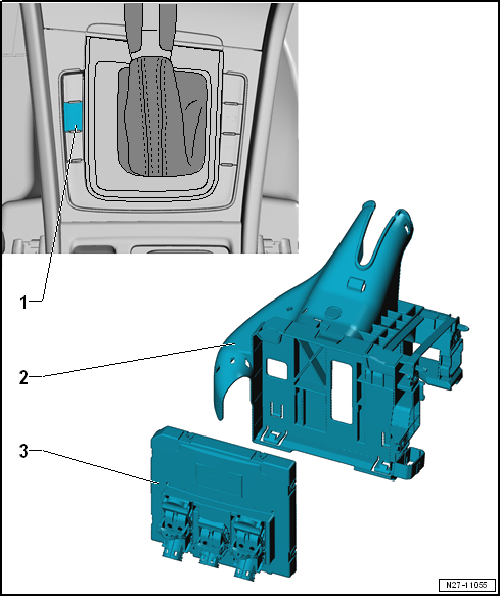

The illustration shows fitting locations for LHD vehicles. Fitting locations for RHD vehicles are similar.

Overview of fitting locations – Start/Stop system

1 -	Start/stop operation button -E693-

Removing and installing → Chapter

2 -

Bracket

For onboard supply control unit -J519-

3 -	Onboard supply control unit -J519-

Overview of fitting locations → Chapter
