Volkswagen Golf Service & Repair Manual: Removing and installing bracket for onboard supply control unit -J519-, LHD vehicles

Volkswagen Golf Service & Repair Manual / Electrical system / Wiring / Control units / Removing and installing bracket for onboard supply control unit -J519-, LHD vehicles

Removing
–  With ignition switched off, disconnect earth cable from battery → Chapter.
–  Remove dash panel → General body repairs, interior; Rep. gr.70.

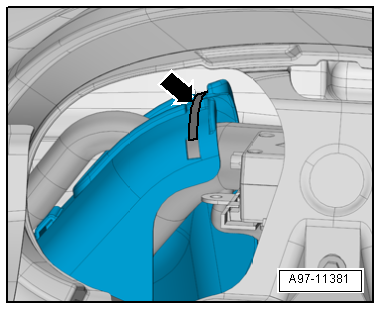

–  Cut through cable tie -arrow-.
–  Disengage fuse holder C and push to side → Chapter.
–  Disconnect connector for front parking aid warning buzzer -H22- → Chapter.
–  Disconnect connector for onboard supply control unit -J519- → Chapter.
–  Disconnect connector for parking aid control unit -J446-/park assist steering control unit -J791- → Chapter.
–  Release locking mechanism on bracket and press out bracket to remove diagnostics connector.


Removing and installing bracket for onboard supply control unit -J519-, LHD vehicles

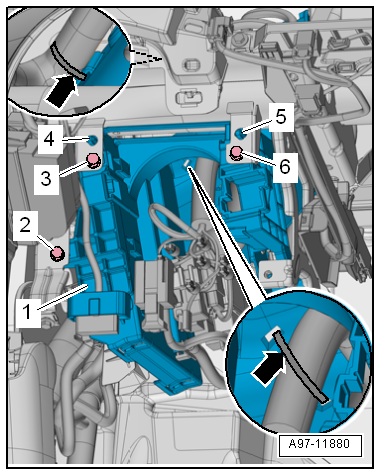

–  Unscrew bolts -2, 3 and 6-.
–  Push bracket -1- forwards out of central tube until centring pins -4, 5- are disengaged.
–  Cut through cable ties -arrows-.
–  Move electrical wiring harness clear at mounting.
–  Take out bracket towards passenger compartment.
Installing
Installation is carried out in the reverse sequence.
