Volkswagen Golf Service & Repair Manual: Removing and installing front parking aid warning buzzer -H22-, RHD vehicles
| – |
Remove glove compartment
→ General body repairs, Interior; Rep. gr.68. |
|
|
|
| – |

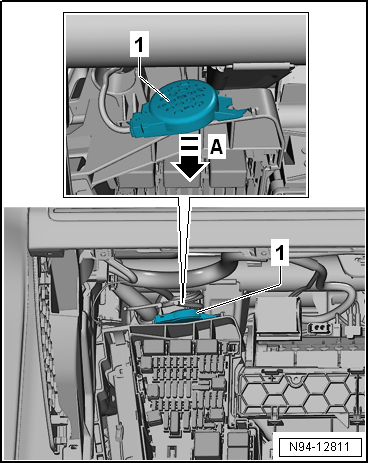

Using a narrow screwdriver, push front parking aid warning
buzzer -H22--1- out of mounting in
direction of arrow -A-. |
| – |
Remove front parking aid warning buzzer -H22--1-. |
| – |
Disconnect electrical connector. |
| Installation is carried out in the reverse sequence. |
|
|
|
Removing
–
Remove trim under dash panel
→ General body repairs, interior; Rep. gr.68.
...
Removing
–
Remove C-pillar trim
→ General body repairs, interior; Rep. gr.70.
...
