Removing

–	Remove luggage compartment side trim, estate → Chapter.

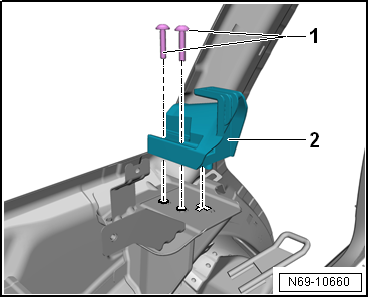

–	Unscrew the 2 bolts -1-, and remove belt guide -2-.

Installing

Installation is carried out in reverse order.

Note

Observe correct installation position of the belt guide when installing.

Specified torques

→ Chapter „Assembly overview - three-point seat belt, estate, without belt tensioner“

→ Chapter „Assembly overview - three-point seat belt, estate, with belt tensioner“
