Volkswagen Golf Service & Repair Manual: Removing and installing Tiptronic switch in steering wheel -E439-/-E438-

Volkswagen Golf Service & Repair Manual / Communication / Infotainment / Multifunction steering wheel / Removing and installing Tiptronic switch in steering wheel -E439-/-E438-

Special tools and workshop equipment required

Torque wrench -V.A.G 1783-
Removing
  Note
Removal and installation are described for the left side. Removal and installation on the right side are carried out laterally reversed in the same way.
–  Switch off ignition and all electrical consumers, and remove ignition key.
–  Remove multifunction buttons in steering wheel -E441-/-E440- → Chapter.

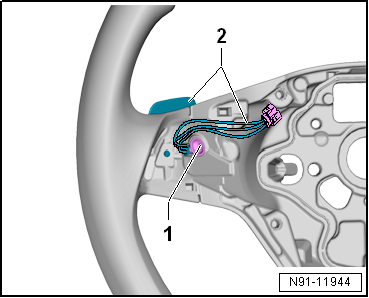

Removing and installing Tiptronic switch in steering wheel -E439-/-E438-

–  Remove bolt -1- on steering wheel.
–  Remove switch for Tiptronic -2- with connector wiring backwards.
Installing
Install in the reverse order of removal. When doing this, note the following:
Specified torques
→ Chapter „Overview - multifunction steering wheel“


Removing and installing Tiptronic switch in steering wheel -E439-/-E438-

Removing and installing steering wheel multifunction buttons -E441-/-E440-
