Volkswagen Golf Service & Repair Manual: Removing and installing wiper blade
| – |
Move wipers to service position
→ Chapter. |
Caution
| Risk of damage to the wiper blade. |
| Joint-free wipers are very flexible. To lift the
wiper blades off the windscreen, touch them only in the
area in which the wiper blades are attached to the
wipers. |
|
| – |
Lift wiper arm off the windscreen. |
|
|
|
| – |

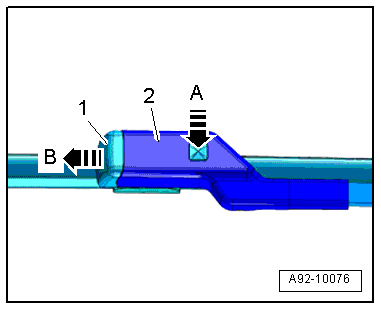

Press retaining clip -arrow A-
and push wiper blade -1- off wiper
arm -2--arrow B-. |
| – |
Remove wiper blade -1-. |
Caution
| Risk of damage to the vehicle body. |
| Wiper blades for driver and front passenger sides
each have a different length. |
|
| Install in the reverse order of removal, observing the
following: |
|
|
|
| – |

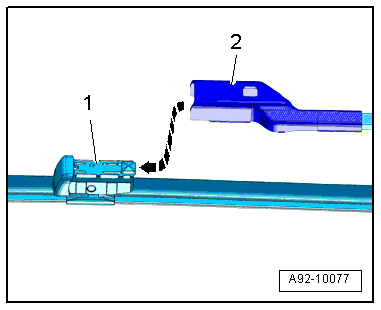

Insert wiper blade -1- in
parallel movement into wiper arm
-2--arrow-. Ensure that wiper blade
-1- is pushed into wiper arm -2-
until retaining clip is heard to engage. |
| To leave the “service position”: |
| – |
Operate windscreen wiper switch. Or |
| – |
Drive vehicle faster than 6 km/h. |
|
|
|
Caution
Risk of damaging the bonnet when moving wipers back
into the park position.
...
Special tools and workshop equipment
required
Puller -T10369-
Removing
...
