Volkswagen Golf Service & Repair Manual: Renewing oil seal for inner input shaft

Volkswagen Golf Service & Repair Manual / 7- speed dual clutch gearbox 0CW / Clutch, control / Clutch / Renewing oil seal for inner input shaft

Special tools and workshop equipment required

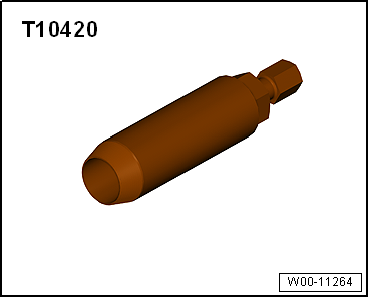

Oil seal extractor -T10420-

Renewing oil seal for inner input shaft

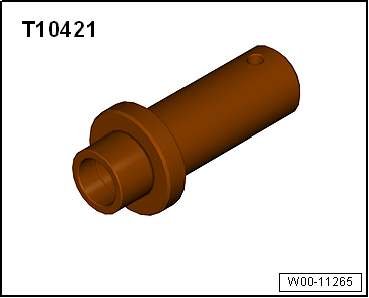

Thrust piece -T10421-

Requirement:

Dual clutch removed → Chapter.

Clutch engagement mechanism removed → Chapter.

Caution

Risk of damage to clutch and other components!

Renew dual clutch if it is oily.

Note

Renewing oil seal for inner input shaft

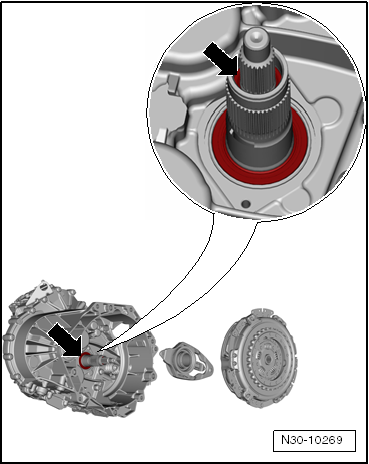

There are 2 oil seals in gearbox at clutch end. Both oil seals can be renewed without dismantling the gearbox. If only the oil seals are being renewed, it is not necessary to adjust the clutch engagement mechanism.

Renewing oil seal for inner input shaft

–	Unscrew spindle of oil seal extractor -T10420-.

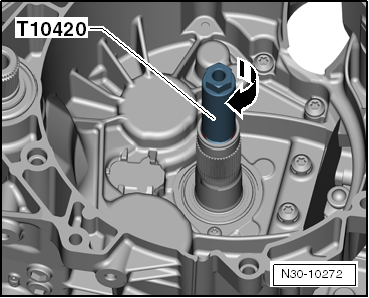

–	Screw oil seal extractor -T10420- into »small«, inner oil seal. Push on puller when screwing in.

Note

Puller will become very tightly clamped when turning oil seal.

–	Screw puller in until the seal begins to turn in its seat.

Renewing oil seal for inner input shaft

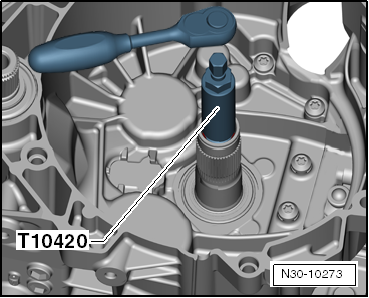

–	Now screw in spindle.

–	Pull out oil seal using spindle.

Renewing oil seal for inner input shaft

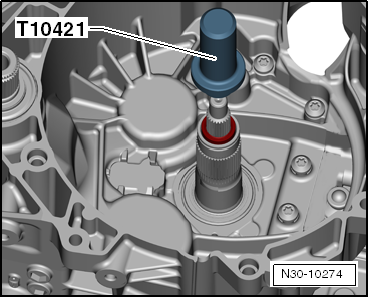

–	Drive in new oil seal using thrust piece -T10421- (drive in until thrust piece contacts stop).

Installation depth of seal: 17.5 ± 0.2 mm

–	Install clutch engagement mechanism → Chapter.

–	Install dual clutch → Chapter.

→ Chapter „Renewing input shaft seal“

Renewing oil seal for inner input shaft

Renewing input shaft seal

Special tools and workshop equipment required Tube -VW 415 A- ...
