Volkswagen Golf Service & Repair Manual: Run-flat tyre system PAX, checking support ring

Volkswagen Golf Service & Repair Manual / Wheels and Tyres Guide - General Information / Information on wheel rims / Run-flat tyre system PAX / Run-flat tyre system PAX, checking support ring

As with tyres, the support ring does not always need to be renewed after driving with a flat tyre.

If the following damage can be observed, renew the support ring:

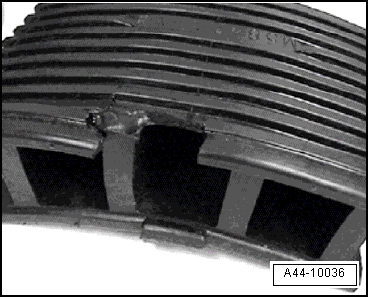

Broken parts or missing sections

Run-flat tyre system PAX, checking support ring

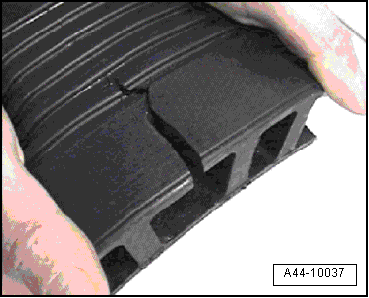

Tears in the running surface/separating walls

Run-flat tyre system PAX, checking support ring

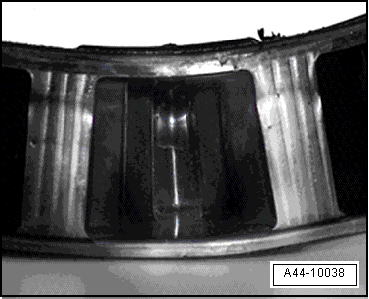

Punctures and holes

Run-flat tyre system PAX, checking support ring

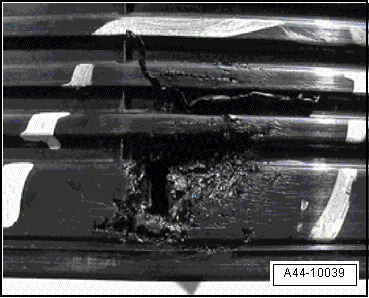

Blistering and discolouration due to overheating

Repairs on tyres

Note

Run-flat tyres (PAX) must not be repaired using a tyre patch or similar.

Flat tyre sprays/foams must not be used with PAX tyres, as these products are not compatible with the gel in the tyre.

Run-flat tyre system PAX, checking support ring
