Volkswagen Golf Service & Repair Manual: Wheel allocation

Volkswagen Golf Service & Repair Manual / Wheels and Tyres guide / Wheel allocation

6 J x 15

6 J x 15
  Note
Always observe the allocation of wheels and tyres to the respective engines, which are listed in the overview table.
Explanation of information on wheels: → Wheels and Tyres Guide - General information; Rep. gr.44
Specified torque for wheel bolts: → Running gear, axles, steering; Rep. gr.44
Pitch circle diameter: 112 mm
Number of wheel bolt holes: 5


5Q0 601 027, 5Q0 601 027 L, 5Q0 601 027 N - steel rim


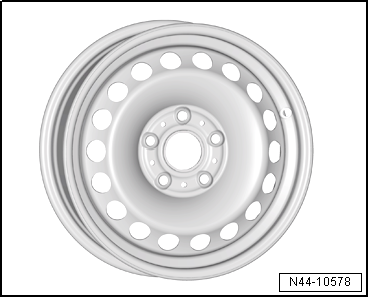

6 J x 15

Size: 6 J x 15
Wheel offset in mm: 43
Wheel load in kg: 615


5G0 601 025 H, 5G0 601 025 AA - aluminium rim “LYON”


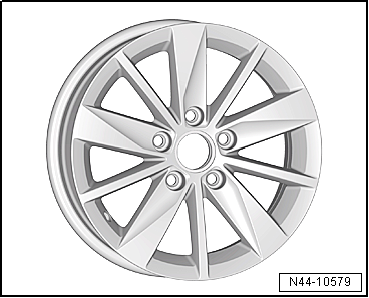

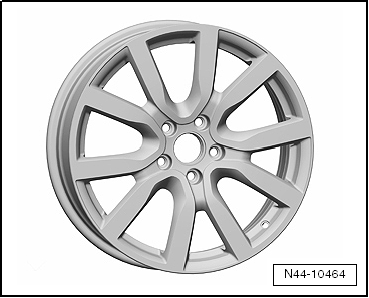

6 J x 15

Size: 6 J x 15
Wheel offset in mm: 43
Wheel load in kg: 575

6 J x 16

  Note
Always observe the allocation of wheels and tyres to the respective engines, which are listed in the overview table.
Explanation of information on wheels: → Wheels and Tyres Guide - General information; Rep. gr.44
Specified torque for wheel bolts: → Running gear, axles, steering; Rep. gr.44
Pitch circle diameter: 112 mm
Number of wheel bolt holes: 5


5Q0 601 027 E, 5Q0 601 027 H - steel rim


6 J x 16

Size: 6 J x 16
Wheel offset in mm: 48
Wheel load in kg: 615


5Q0 601 027 Q, 5Q0 601 027 AF, 5Q0 601 027 AG - steel rim

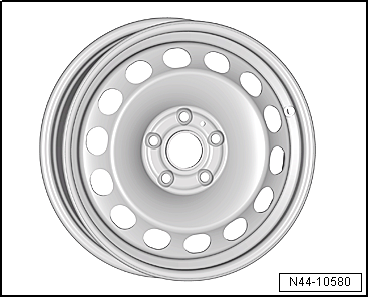

  N44-10580
Size: 6 J x 16
Wheel offset in mm: 48
Wheel load in kg: 615


5G0 601 025 CE - Aluminium rim “ASPEN”


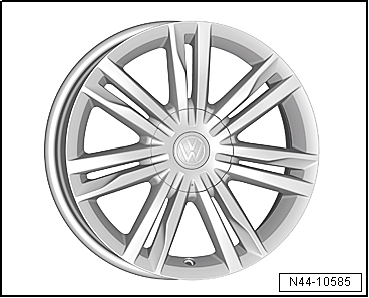

6 J x 16

Size: 6 J x 16
Wheel offset in mm: 48
Wheel load in kg: 600

61/2 J x 16


61/2 J x 16
  Note
Always observe the allocation of wheels and tyres to the respective engines, which are listed in the overview table.
Explanation of information on wheels: → Wheels and Tyres Guide - General information; Rep. gr.44
Specified torque for wheel bolts: → Running gear, axles, steering; Rep. gr.44
Pitch circle diameter: 112 mm
Number of wheel bolt holes: 5


5G0 601 025, 5G0 601 025 L, 5G0 601 025 M - aluminium rim “TORONTO”


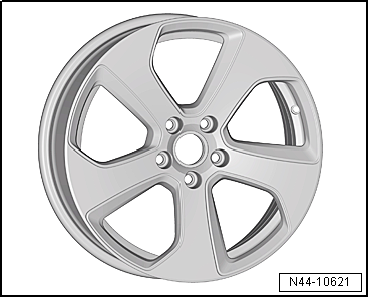

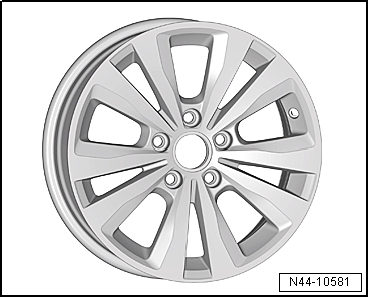

61/2 J x 16

Size: 61/2 J x 16
Wheel offset in mm: 46
Wheel load in kg: 575

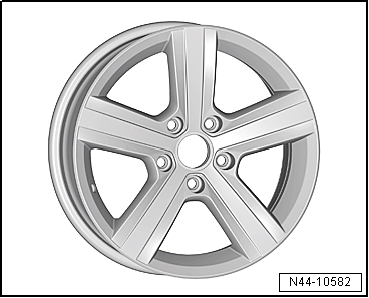

5G0 601 025 A, 5G0 601 025 N, 5G0 601 025 P, 5G0 601 025 Q - aluminium rim “DOVER”
  N44-10582
Size: 61/2 J x 16
Wheel offset in mm: 46
Wheel load in kg: 600


5G0 601 025 BN, 5G0 601 025 Q - aluminium rim “DOVER”


61/2 J x 16

Size: 61/2 J x 16
Wheel offset in mm: 46
Wheel load in kg: 600

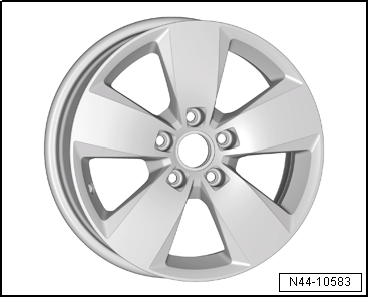

5G0 601 025 J, 5G0 601 025 AC - aluminium rim “PERTH”
  N44-10583
Size: 61/2 J x 16
Wheel offset in mm: 46
Wheel load in kg: 600


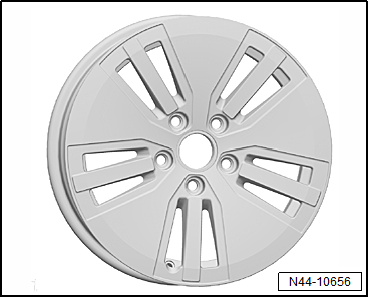

5GE 601 025 - Aluminium rim “ASTANA”


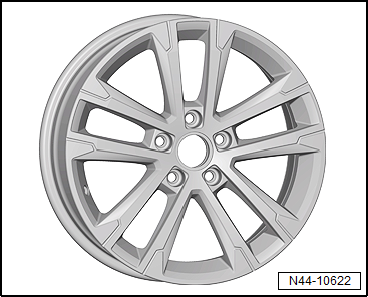

61/2 J x 16

Size: 61/2 J x 16
Wheel offset in mm: 46
Wheel load in kg: 600


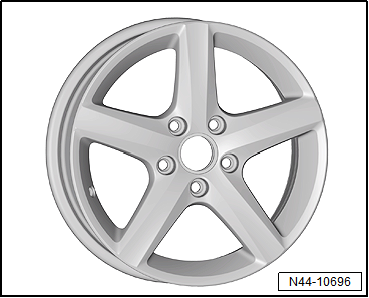

5G0 601 025 AT - aluminium rim “FORTALEZA”


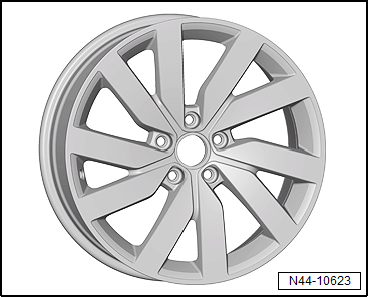

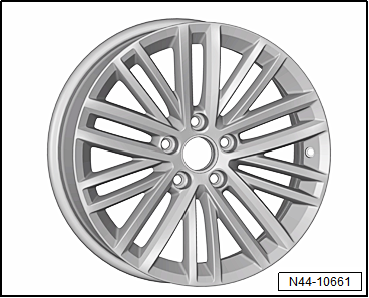

61/2 J x 16

Size: 61/2 J x 16
Wheel offset in mm: 46
Wheel load in kg: 600

6 J x 17

  Note
Always observe the allocation of wheels and tyres to the respective engines, which are listed in the overview table.
Explanation of information on wheels: → Wheels and Tyres Guide - General information; Rep. gr.44
Specified torque for wheel bolts: → Running gear, axles, steering; Rep. gr.44
Pitch circle diameter: 112 mm
Number of wheel bolt holes: 5


Winter wheel
5G0 601 025 K - aluminium rim “DIJON”


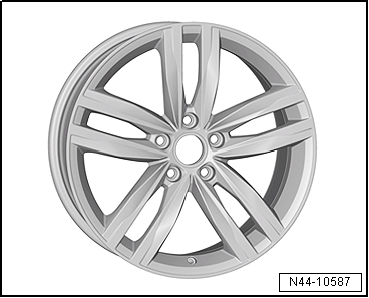

6 J x 17

Size: 6 J x 17
Wheel offset in mm: 48
Wheel load in kg: 600

7 J x 17

  Note
Always observe the allocation of wheels and tyres to the respective engines, which are listed in the overview table.
Explanation of information on wheels: → Wheels and Tyres Guide - General information; Rep. gr.44
Specified torque for wheel bolts: → Running gear, axles, steering; Rep. gr.44
Pitch circle diameter: 112 mm
Number of wheel bolt holes: 5


5G0 601 025 B, 5G0 601 025 R, 5G0 601 025 S - aluminium rim “DIJON”


7 J x 17

Size: 7 J x 17
Wheel offset in mm: 49
Wheel load in kg: 600


5G0 601 025 C, 5G0 601 025 T - aluminium rim “GENEVA”


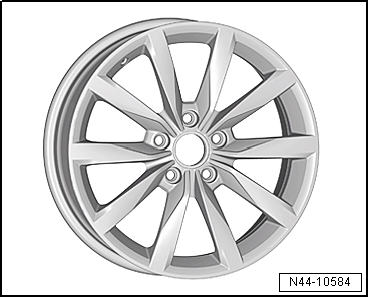

7 J x 17

Size: 7 J x 17
Wheel offset in mm: 49
Wheel load in kg: 575


5G0 601 025 D - aluminium rim “MADRID”

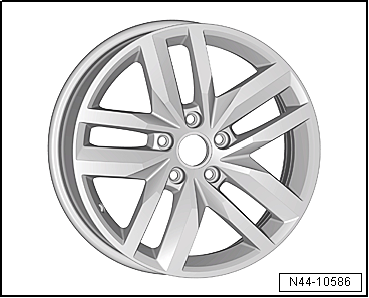

  N44-10586
Size: 7 J x 17
Wheel offset in mm: 49
Wheel load in kg: 600


5G0 601 025 AK - aluminium rim “SINGAPORE”


7 J x 17

Size: 7 J x 17
Wheel offset in mm: 49
Wheel load in kg: 600


5G0 601 025 AE - aluminium rim “SALVADOR”


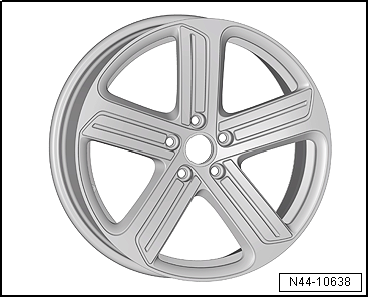

7 J x 17

Size: 7 J x 17
Wheel offset in mm: 49
Wheel load in kg: 600

71/2 J x 17

  Note
Always observe the allocation of wheels and tyres to the respective engines, which are listed in the overview table.
Explanation of information on wheels: → Wheels and Tyres Guide - General information; Rep. gr.44
Specified torque for wheel bolts: → Running gear, axles, steering; Rep. gr.44
Pitch circle diameter: 112 mm
Number of wheel bolt holes: 5


5G0 601 025 AP - aluminium rim “CURITIBA”


71/2 J x 17

Size: 71/2 J x 17
Wheel offset in mm: 49
Wheel load in kg: 575


5G0 601 025 AR, 5G0 601 025 BG - aluminium rim “BROOKLYN”


71/2 J x 17

Size: 71/2 J x 17
Wheel offset in mm: 49
Wheel load in kg: 600

71/2 J x 18 offset 49

  Note
Always observe the allocation of wheels and tyres to the respective engines, which are listed in the overview table.
Explanation of information on wheels: → Wheels and Tyres Guide - General information; Rep. gr.44
Specified torque for wheel bolts: → Running gear, axles, steering; Rep. gr.44
Pitch circle diameter: 112 mm
Number of wheel bolt holes: 5


5G0 601 025 AQ - aluminium rim “NOGARO”


71/2 J x 18 offset 49

Size: 71/2 J x 18
Wheel offset in mm: 49
Wheel load in kg: 600


5G0 601 025 AS - aluminium rim “AUSTIN”


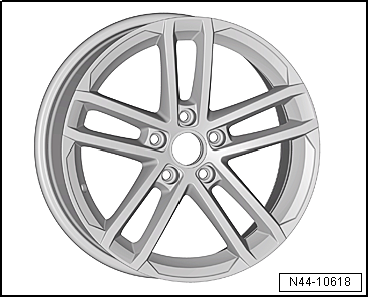

71/2 J x 18 offset 49

Size: 71/2 J x 18
Wheel offset in mm: 49
Wheel load in kg: 600


5G0 601 025 AG - aluminium rim “CADIZ”


71/2 J x 18 offset 49

Size: 71/2 J x 18
Wheel offset in mm: 49
Wheel load in kg: 600


Winter wheel
5G0 601 025 BK - aluminium rim “CADIZ”


71/2 J x 18 offset 49

Size: 71/2 J x 18
Wheel offset in mm: 49
Wheel load in kg: 600

71/2 J x 18 offset 51

  Note
Always observe the allocation of wheels and tyres to the respective engines, which are listed in the overview table.
Explanation of information on wheels: → Wheels and Tyres Guide - General information; Rep. gr.44
Specified torque for wheel bolts: → Running gear, axles, steering; Rep. gr.44
Pitch circle diameter: 112 mm
Number of wheel bolt holes: 5


5G0 601 025 G - aluminium rim “DURBAN”


71/2 J x 18 offset 51

Size: 71/2 J x 18
Wheel offset in mm: 51
Wheel load in kg: 615


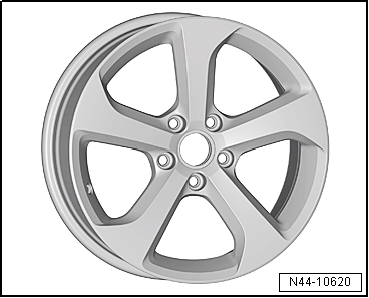

5G0 601 025 AL - aluminium rim “MARSEILLE”


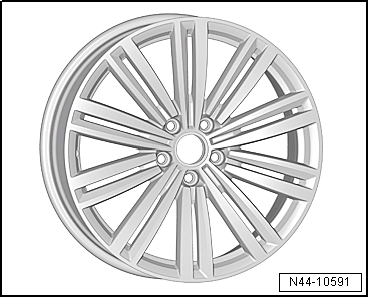

71/2 J x 18 offset 51

Size: 71/2 J x 18
Wheel offset in mm: 51
Wheel load in kg: 600


5G0 601 025 AF - aluminium rim “SALVADOR”


71/2 J x 18 offset 51

Size: 71/2 J x 18
Wheel offset in mm: 51
Wheel load in kg: 600


5K0 601 025 AC - aluminium rim “SERRON”


71/2 J x 18 offset 51

Size: 71/2 J x 18
Wheel offset in mm: 51
Wheel load in kg: 630

71/2 J x 19

  Note
Always observe the allocation of wheels and tyres to the respective engines, which are listed in the overview table.
Explanation of information on wheels: → Wheels and Tyres Guide - General information; Rep. gr.44
Specified torque for wheel bolts: → Running gear, axles, steering; Rep. gr.44
Pitch circle diameter: 112 mm
Number of wheel bolt holes: 5


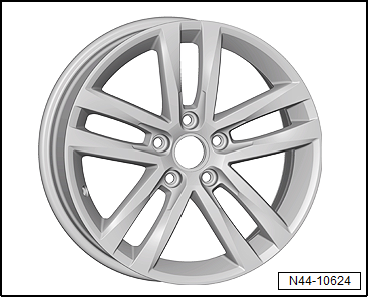

5G0 601 025 AM - aluminium rim “LUXOR”


71/2 J x 19

Size: 71/2 J x 19
Wheel offset in mm: 51
Wheel load in kg: 600


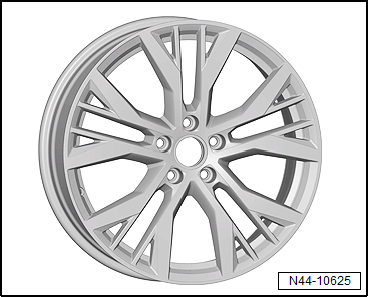

5G0 601 025 AN - aluminium rim “SANTIAGO”


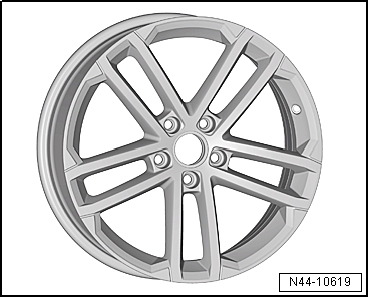

71/2 J x 19

Size: 71/2 J x 19
Wheel offset in mm: 51
Wheel load in kg: 600

8 J x 19

  Note
Always observe the allocation of wheels and tyres to the respective engines, which are listed in the overview table.
Explanation of information on wheels: → Wheels and Tyres Guide - General information; Rep. gr.44
Specified torque for wheel bolts: → Running gear, axles, steering; Rep. gr.44
Pitch circle diameter: 112 mm
Number of wheel bolt holes: 5

  Caution
8 J x 19 wheels can only be fitted under the following conditions:
The wheels may only be fitted on R vehicles which have factory-fitted 19 inch wheels and have been delivered with these wheels.
Retrofitting vehicles with factory fitted 18 inch wheels is not possible.

5G0 601 025 AH - aluminium rim “CADIZ”


8 J x 19

Size: 8 J x 19
Wheel offset in mm: 50
Wheel load in kg: 600


5G0 601 025 AJ - aluminium rim “PRETORIA”


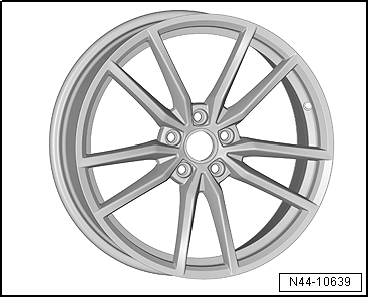

8 J x 19

Size: 8 J x 19
Wheel offset in mm: 50
Wheel load in kg: 600
Golf R - from model year 2014, sales type 5G1
  Note The specified wheel and tyre combinations apply for all the gearboxes allocated to the respective engines. Deviations from this are specially indicated ...

Recommended summer tyres
Recommended summer tyres, worldwide except North America and China Notes regarding the recommended tyres →  → Chapter „Explanations regarding world reg ...
