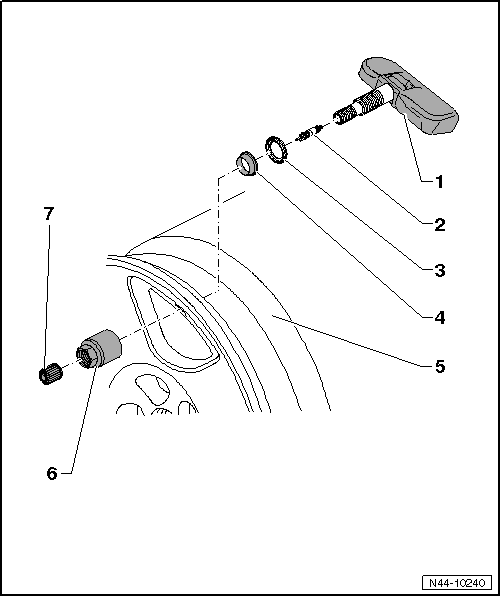

Volkswagen Golf Service & Repair Manual: Assembly overview - tyre pressure sensor, tyre pressure sensor with valve
| 1 - | Tyre pressure sensor |
| Supplied complete as spare part. |
| Removing and installing → Chapter |
| Replace complete tyre pressure sensor when battery is dead |
| After using breakdown set, wipe clean hole for valve and opening for pressure sensor |
| 2 - | Valve core |
| Allocation → Electronic Parts Catalogue “ETKA” |
| Always renew when changing tyre |
Note| Always use a Genuine valve core only. It has a special coating! |
| 3 - | Sealing washer |
| Will be slightly deformed when the union → Item nut is tightened |
| 4 - | Sealing ring |
| 5 - | Wheel rim |
| Fitting tyres with run-flat properties → Chapter |
| Fitting tyres of wheels with tyre pressure monitoring → Chapter |
| 6 - | Union nut |
| 8 Nm |
| 7 - | Valve cap |
| Use only genuine valve caps from repair set → Electronic Parts Catalogue “ETKA”. |
| Do not use convenience valve caps or metal valve caps. |
Assembly overview - tyre pressure sensor, tyre pressure sensor without valve
1 -
Valve cap
2 -
Nut
Separate part of
→ Item.
Specified torque
→ Anchor
...
