The brake pedal travel must not be restricted by additional floor coverings.

Note

Do not lubricate or grease the pivot pin. The pivot pin must remain dry.

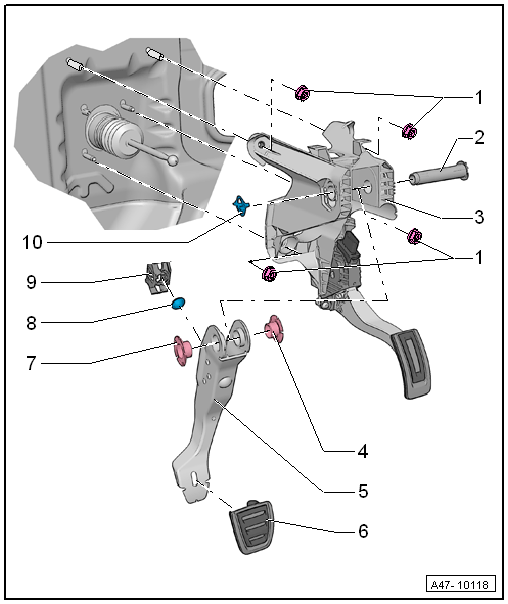

Assembly overview - brake pedal, LHD vehicles

1 -	Self-locking hexagon nut

Renew after removing

Bolting sequence → Fig.

25 Nm

2 -

Pivot pin

To remove, remove mounting bracket first

Removal: turn pivot pin clockwise until pivot pin tabs break off

Renew pivot pin

Do not lubricate or grease the pivot pin. The pivot pin must remain dry.

Installation: Turn pivot pin anti-clockwise until tabs engage audibly on stop.

3 -	Pedal cluster with mounting bracket

Removing and installing → Chapter

4 -	Bearing bush

Cannot be renewed individually; ensure correct installation position

5 -	Brake pedal

Separating brake pedal from brake servo → Chapter

Connecting brake pedal to brake servo → Chapter

Removing and installing → Chapter

6 -

Cap

7 -	Bearing bush

Cannot be renewed individually; ensure correct installation position

8 -	Bearing shell

9 -

Mounting

For ball head of brake servo plunger rod.

10 -	Securing clip

Renew

Insert into both holes in mounting bracket.

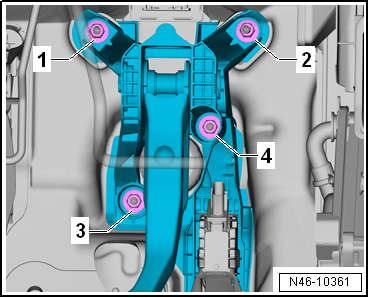

Bolting sequence:

Assembly overview - brake pedal, LHD vehicles
