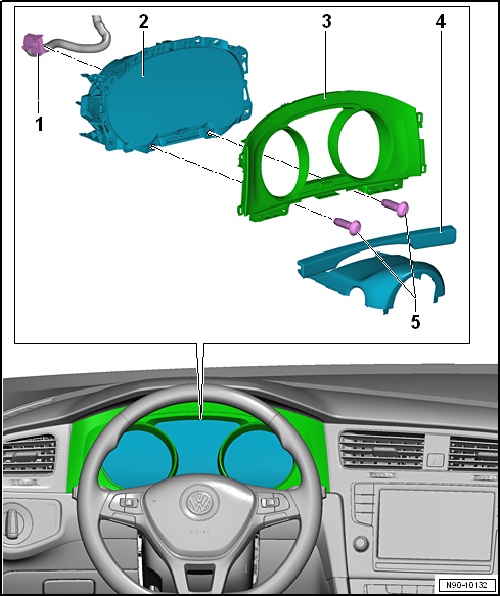

Assembly overview - dash panel insert

1 -	Electrical connector

For dash panel insert

2 -	Dash panel insert -KX2-

With control unit in dash panel insert -J285-.

Dash panel insert must be renewed if warning lamp LED or illumination for dash panel insert is defective

Removing and installing → Chapter

3 -	Dash panel insert trim

Removing and installing → General body repairs, interior; Rep. gr.70.

4 -	Steering column trim (top)

Assembly overview → General body repairs, interior; Rep. gr.68.

5 -

Bolt

Qty. 2

Specified torque: 2.5 Nm
