Volkswagen Golf Service & Repair Manual: Assembly overview - driver side dash panel cover

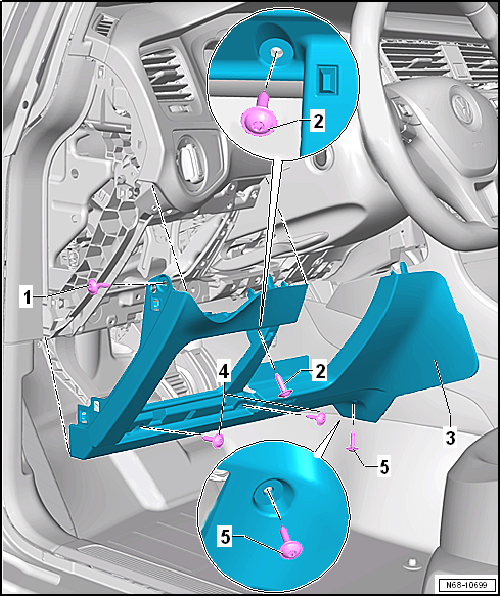

Assembly overview - driver side dash panel cover

1 -  Bolt
2 -  Bolt
3 -  Driver side dash panel cover
4 -  Bolt
5 -  Bolt
Assembly overview - driver side footwell cover
1 -  Driver side footwell cover Removing and installing → Chapter 2 -  Bracket 3 -  Bolt 1.5& ...

Assembly overview - steering column trim
1 -  Dash panel Assembly overview → Chapter 2 -  Gap cover Removing and installing → Chapter 3& ...
