Note

Only the left side is shown. The right side is similar.

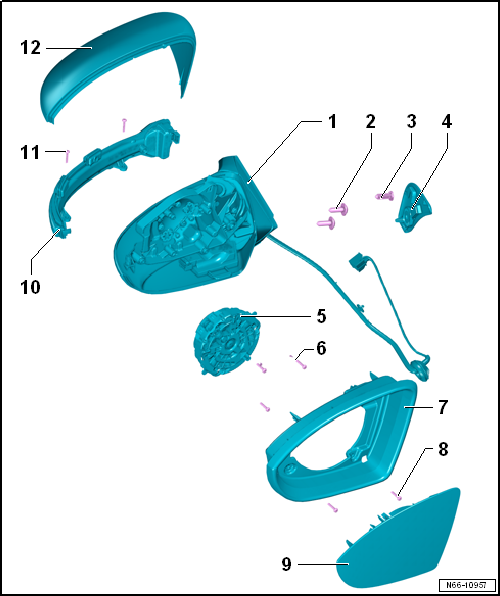

Assembly overview - exterior mirror

1 -	Mirror mounting

Removing and installing → Chapter

2 -

Bolt

Qty. 2
9.0 Nm

3 -

Clip

4 -

Cover

Removing and installing → Chapter.

5 -	Adjuster unit

Removing and installing → Chapter

6 -

Bolt

Qty. 3
1.0 Nm

7 -	Mirror frame

Removing and installing → Chapter

8 -

Bolt

Qty. 2
1.0 Nm

9 -	Mirror glass

Removing and installing → Chapter

10 -	Turn signal

Removing and installing → Electrical system; Rep. gr.94

11 -

Bolt

Qty. 2
1.0 Nm

12 -	Mirror cover

Material: ABS
Removing and installing → Chapter
