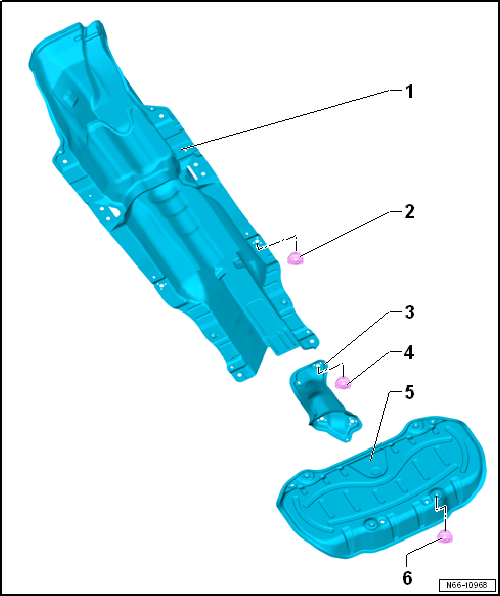

Volkswagen Golf Service & Repair Manual: Assembly overview - heat shield
| 1 - | Underbody heat shield |
- Removing and installing → Chapter
| 2 - | Retainer |
- Qty. 6
| 3 - | Heat shield for centre exhaust system |
- Removing and installing → Chapter.
| 4 - | Retainer |
- Qty. 2
| 5 - | Heat shield for rear silencer |
- Removing and installing → Chapter.
| 6 - | Retainer |
- Qty. 5
