Volkswagen Golf Service & Repair Manual: Removing and installing water deflector
Note
| Removal and installation are described only for the left side.
Removal and installation of the right side are similar. |
| – |

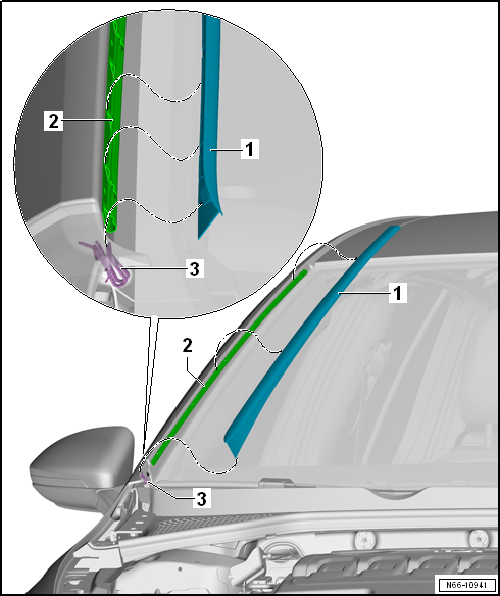

Starting at bottom end, pull water deflector
-1- out of clip -3- and retaining
strip -2-. |
| – |
Position upper inner edge of water deflector
-1- on upper edge of windscreen. |
| – |
Press water deflector -1- from above
into retaining strip -2- and clip
-3-. |
| – |
Fit contact lip between water deflector and windscreen behind
window. |
1 -
Underbody heat shield
Removing and installing
→ Chapter
2 -
Retainer
Qty. 6
3 -
Heat shie ...
Note
Removal and installation are described only for the left side.
Removal and installation of the right side are similar.
Removing
–
...
