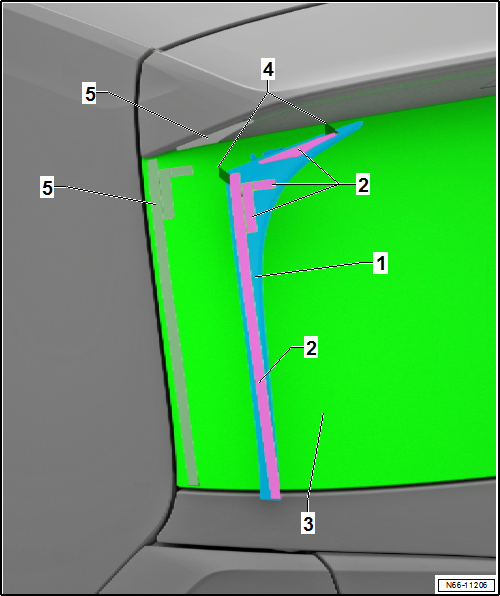

Volkswagen Golf Service & Repair Manual: Assembly overview - side spoiler
| 1 - | Side spoiler |
| 2 - | Adhesive strips |
- Part of side spoiler
| 3 - | Rear window |
| 4 - | Removal aid |
- For protective film of adhesive tape
| 5 - | Bonding surface |
- On rear window and roof spoiler
Assembly overview - roof spoiler
1 -
Roof spoiler
Material PC/PET
With foam strip serving as intermediate piece
With 4 fasteners with foam ring
Removing and installing
→ Chapter ...
Removing and installing roof spoiler
Removing
Note
The side spoiler remains installed.
–
Remove ...
