Volkswagen Golf Service & Repair Manual: Checking valve timing, engine codes CHPA, CMBA, CPVA, CXSA, CZCA, CPVB, CZDA
Special tools and workshop equipment
required |
|
|
|
– |
Loosen hose clips -1, 2- and
remove air pipe. |
– |
Move air hoses clear at air pipe. |
– |
Detach connector from charge pressure sender -GX26-. |
|
|
|
– |
Release fasteners -arrows-
using release tools -T10527- and -T10527/1-. |
|
|
|
– |
Press release tabs and disconnect hose
-1- for activated charcoal filter. |
– |
Remove bolts -arrows- and
detach crankcase breather hose. |
– |
Remove noise insulation
→ General body repairs, exterior; Rep. gr.66. |
– |
Drain coolant
→ Chapter. |
|
|
|
– |
Unscrew bolts -A ... D-, and
push cover -1- for thermostat to
one side. |
|
|
|
– |
Lay wiring harness to one side
-arrows-. |
– |
Unscrew bolts -1, 3- and remove
cover -2- for toothed belt for
coolant pump. |
|
|
|
– |
Unscrew bolts -arrows- and
detach sealing cap -1-. |
Rotate crankshaft to “TDC” as follows: |
– |
Remove ignition coil 1 with output stage -N70- and cylinder
1 spark plug
→ Chapter. |
– |
Insert a screwdriver with a shaft length of at least 250 mm
into spark plug hole so that it contact piston crown. |
– |
Turn the crankshaft in the normal direction of rotation
until the piston in cylinder 1 shows “BDC”. |
|
|
|
The screwdriver moves in the
-direction of the arrow-. |
|
|
|
– |
Turn the crankshaft further, until the screwdriver has moved
-30 mm- in the
-direction of the arrows- |
|
|
|
– |
Unscrew plug for “TDC” hole in cylinder block. |
– |

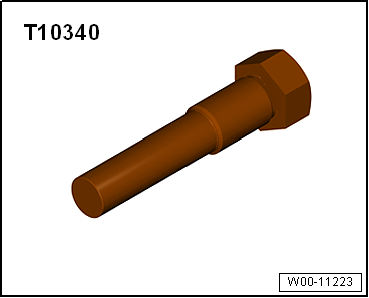

Screw locking pin -T10340- into cylinder block as far as
stop and tighten to 30 Nm. |
– |
Rotate crankshaft in normal direction of rotation as far as
stop. |
The locking pin now rests against the crank web. |
Note
Locking pin -T10340- locks crankshaft in direction of engine
rotation only. |
If locking pin -T10340- cannot be screwed in as far as stop,
this indicates that crankshaft is not in the correct position! |
In this case, proceed as follows: |
Turn crankshaft 90° in direction of engine rotation. |
Screw locking pin -T10340- into cylinder block as far as
stop and tighten to 30 Nm. |
Turn crankshaft in direction of engine rotation as far as
stop. |

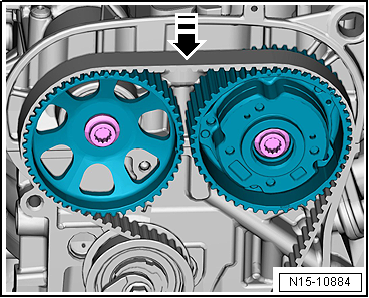

The asymmetrically positioned grooves on gearbox end of both
camshafts -arrows, upper figure-
must be above the horizontal centre line, as shown in figure. |
|
|
|
The grooves on the exhaust camshaft
-upper arrows- can be accessed through the recesses in
toothed belt pulley for coolant pump. |
On the inlet camshaft the grooves
-lower arrows- must also be positioned right above
horizontal camshaft centre line. |
– |
If camshafts are not positioned as described, unscrew
locking pin -T10340-, turn crankshaft one rotation further and
return to “TDC” position. |
Note
The camshaft clamp -T10494- must slide into position easily. |
Do not knock camshaft clamp into place with any kind of
tool. |
If the camshaft clamp -T10494- does not easily slide into
position: |
|
|
|
– |
Use assembly tool -T10487- to push against toothed belt in
-direction of arrow-. |
|
|
|
– |
Insert camshaft clamp -T10494- as far as stop into camshaft. |
– |
Tighten bolt -arrow- by hand. |
If camshaft clamp cannot be fitted: |
– |
Adjust valve timing: removing toothed belt from camshafts
→ Chapter. |
If camshaft clamp can be fitted: |
After completing work, check that locking pin -T10340- and
camshaft clamp -T10494- have been removed. |
Further assembly is carried out in the reverse order of
removal. |
Note
Renew bolts that are tightened with specified tightening
angle. |
Renew O-ring of plug if damaged. |
→ Chapter „Assembly overview - toothed belt“ |
→ Fig. „“Plug for TDC drilling in cylinder block - specified
torque”“ |
→ Chapter „Assembly overview - camshaft housing, engine codes
CHPA, CMBA, CPVA, CXSA, CZCA, CPVB, CZDA“ |
→ Chapter „Assembly overview - crankcase breather system“ |
→ Chapter „Assembly overview - coolant pump, thermostat“ |
→ Chapter „Assembly overview - charge air system“ |
|
|
|
1 -
Toothed belt
Before removing, mark direction of rotation with chalk or
felt-tipped marker pen.
Check for wear
Remo ...
Special tools and workshop equipment required

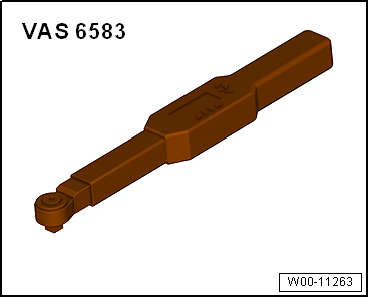

Torque wrench -VAS 6583-
