Volkswagen Golf Owners Manual: Instrument overview

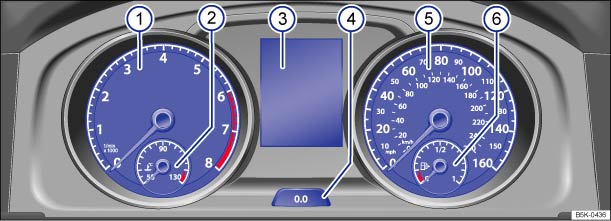

Fig. 12 Instrument cluster in the dash panel
First read and observe the introductory information
and safety warnings Descriptions of the instruments  :
Rev. counter (running engine speed in revolutions x 1,000 per minute).
The start of the red zone on the dial indicates the maximum engine speed that may be used in each gear when the engine is warm and after it has been run in properly. You should change up a gear or move the selector lever to D (or lift your foot off the accelerator) before the needle reaches the red zone  .
Coolant temperature display
  .
Displays   .
Reset, set and display button   .
Speedometer
Fuel gauge   .
NOTICE
- When the engine is cold, avoid high engine speeds, driving at full throttle and overloading the engine.
- The needle on the rev counter should only briefly point into the red area., otherwise engine damage may be incurred.
Changing up a gear early will help to save fuel and minimise engine noise.
