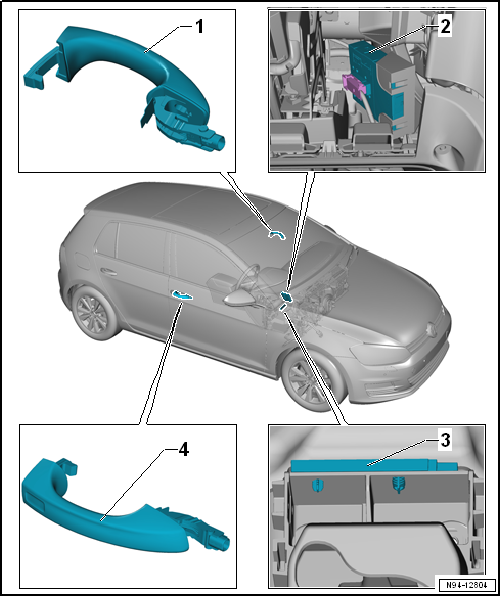

Overview of fitting locations - front keyless entry system, RHD vehicles

1 -	Front passenger door exterior handle

With front passenger door exterior handle contact sensor -G416-. Removing and installing → Chapter

With front passenger side aerial for entry and start system -R135-. Removing and installing → Chapter

2 -	Interface for entry and start system -J965-

Removing and installing → Chapter

3 -	Interior aerial 1 for entry and start authorisation -R138-

Removing and installing → Chapter

4 -	Driver exterior door handle

With driver door exterior handle contact sensor -G415-. Removing and installing → Chapter

With driver side aerial for entry and start system -R134-. Removing and installing → Chapter
