Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches inside, anti- theft system / Controls / Overview of fitting locations – controls in front doors

Note

The illustration shows fitting locations for LHD vehicles. Fitting locations for RHD vehicles are similar.

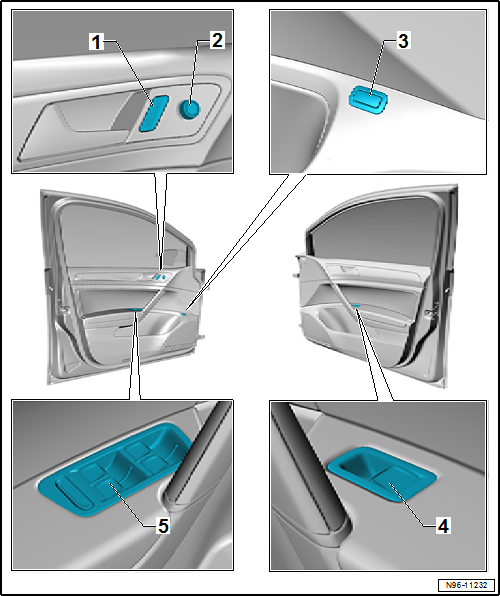

Overview of fitting locations – controls in front doors

1 -	Driver side interior locking button for central locking system -E308-

Removing and installing → Chapter

2 -	Exterior mirror adjuster -EX11-

Removing and installing → Chapter

3 -	Fuel tank flap release button -E319-

Removing and installing → Chapter

4 -	Front passenger side window regulator button -E716-

Removing and installing → Chapter

5 -	Operating unit for window regulator in driver door -E512-

With:

Button for window regulator on driver side -E710-

Front passenger side window regulator button -E716-

Rear driver side window regulator button -E711-

Rear passenger side window regulator button -E713-

Central switch for window regulators in driver door -E189-

Removing and installing → Chapter

Not illustrated:

Button for deactivating interior monitoring and vehicle inclination sensor -E616- → Chapter „Assembly overview - interior monitor“.

Driver door contact switch -F2- and front passenger door contact switch -F3- → Chapter „Removing and installing door contact switch -F2-/-F3-“.
