Volkswagen Golf Service & Repair Manual: Removing and installing entry light in exterior mirror

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches outside / Lights in exterior mirror / Removing and installing entry light in exterior mirror

Special tools and workshop equipment required

Torque wrench -V.A.G 1783-

Note

Removal and installation are described for the left side. Removal and installation on the right side are carried out in the same way.

If the event of a defective LED, the entry light in exterior mirror needs to be renewed.

Removing

–	Removing and installing mirror trim → General body repairs, exterior; Rep. gr.66.

Removing and installing entry light in exterior mirror

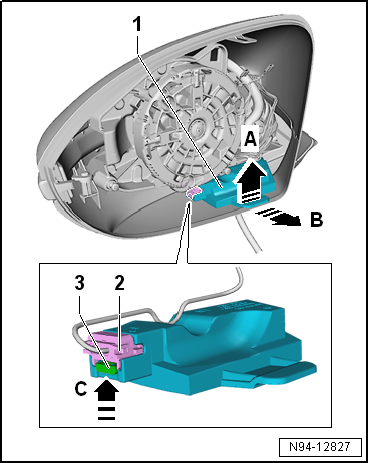

–	Lift driver side entry light in exterior mirror -W52--1- in direction of arrow -A-.

–	Pull driver side entry light in exterior mirror -W52- in direction of arrow -B- out of mirror housing -2-.

–	Press locking mechanism -3- in direction of arrow -C-.

–	Disconnect electrical connector -2-.

Installing

Install in the reverse order of removal, observing the following:

–	Test functionality.

Removing and installing entry light in exterior mirror

Removing and installing turn signal
