Special tools and workshop equipment required

Torque wrench -V.A.G 1783-

Note

Removal and installation are described for the left side. Removal and installation on the right side are carried out in the same way.

If the event of a defective LED, the turn signal repeater needs to be renewed.

Removing

Removing and installing turn signal

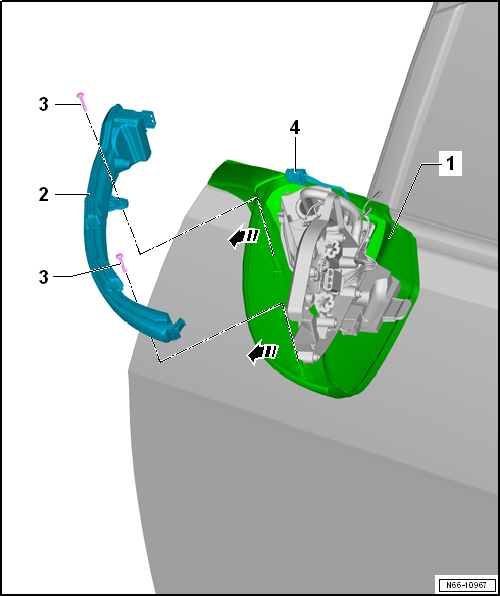

–	Remove mirror cover → General body repairs, exterior; Rep. gr.66.

–	Disconnect electrical connector -4-.

–	Remove bolts -3-.

–	If present, release retaining tab.

–	Remove turn signal -2- upwards from mirror mounting -1-.

Installing

Install in the reverse order of removal, observing the following:

–	Test functionality.

Specified torques

Bolts → Item.

Assembly overview - lights in exterior mirror

1 - Cover for mirror Material: ABS Removing and installing → General body repairs, exterior; Rep. gr.66. 2 ...

Removing and installing entry light in exterior mirror

Special tools and workshop equipment required Torque wrench -V.A.G 1783- Note ...
