Removing and installing front underbody cover – e-Golf

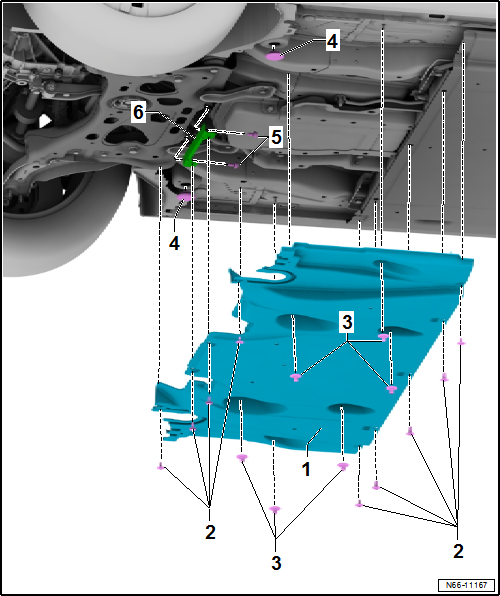

Removing
–  Remove bolts -2-.
–  Unscrew nuts -3-.
–  Remove underbody cover -1-.
Installing
Install analogously in reverse order, but note the following:
Specified torque
  Bolts → Item
  Nuts → Item
Removing and installing underbody covers – petrol/diesel
Note The removal and installation procedures may have to be modified slightly depending on engine fitted. Removing –  Remove centre underbody pan ...

Removing and installing centre underbody covers
Note The removal and installation procedures may have to be modified slightly depending on engine fitted. Removing Unclip spreader river -2- and remove ...
