Removal and installation are described only for the left mirror cover. The right side is similar. |
Removing |
– | Remove mirror glass → Chapter. |

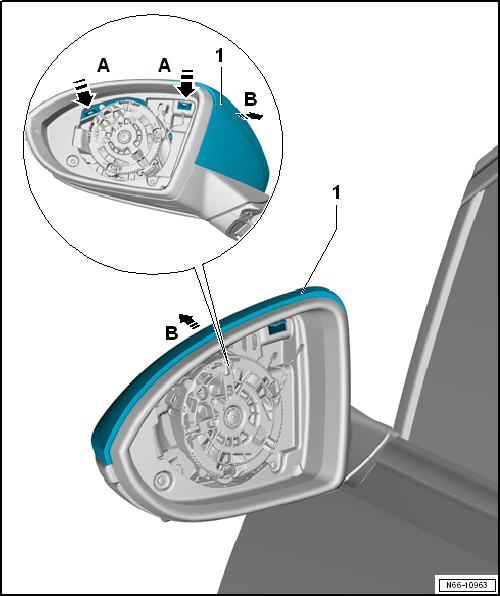

– | Release locking hooks -arrows A-. |
– | Pull mirror cover -1- backwards off mirror mounting in -direction of arrow B-. |
Installing |
– | Position mirror cover -1- and press on until locking hooks engage audibly. |
– | Install mirror glass → Chapter „Removing and installing mirror glass“. |
Undercoating, additional protected areas on hybrid vehicles
Undercoating, rear body of hybrid vehicles
a -
Undercoating
Coat thickness: 0.3 mm
b -
Undercoating
Coat thickness: 0.5 mm
...
Removing and installing front passenger side window regulator button -E716-
Note
The removal and installation procedures are described for
LHD vehicles. Removal and installation for RHD vehicles are
similar.
Removing
–
Remove front door trim panel
→ ...
Wheel change, position of anti-theft wheel bolts for steel wheels
Caution
Adherence to position of anti-theft wheel bolts to
tyre valve on steel wheels is vital.
Anti-theft wheel bolts may only be fitted on ...
