Note

Removal and installation is described for the side defroster vent on driver side. Follow same instructions for the front passenger side as appropriate.

Special tools and workshop equipment required

Removal wedge -3409

Removing

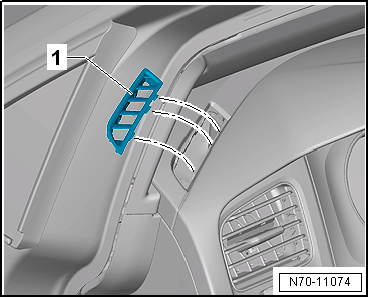

–	Lever defroster vent -1- upwards out of assembly aperture in dash panel using removal wedge -3409- and remove it.

Installing

Installation is carried out in reverse order.
