Removing

–	Move steering wheel to rearmost and lowest position. Use the entire range of adjustment of the steering column for this purpose.

–	Remove steering wheel → Running gear, axles, steering; Rep. gr.48.

–	Remove lower steering column trim → General body repairs, interior; Rep. gr.68.

WARNING

Risk of damage to the electronic components due to electrostatic discharge.

Before disconnecting the electrical connector, the mechanics must electrostatically discharge themselves by briefly grasping hold of door striker plate or similar.

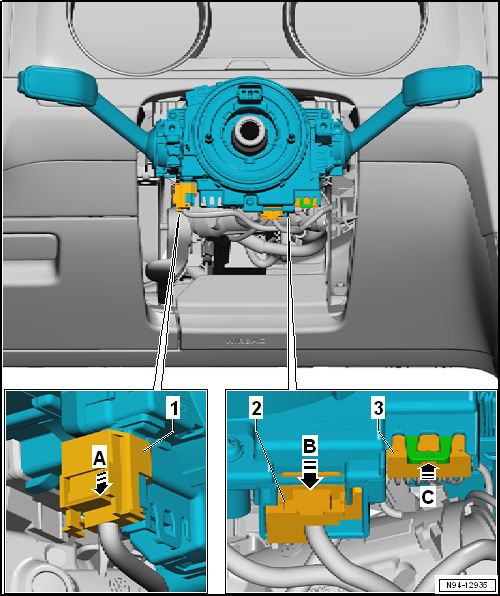

Removing and installing steering column switch module, Valeo

–	Pull out connector lock in direction of arrow -A- and press it down.

–	Disconnect electrical connector -1-.

–	Pull out connector lock in direction of arrow -B- and press it down.

–	Disconnect electrical connector -2-.

–	Press connector lock in direction of arrow -C- and disconnect electrical connector -3-.

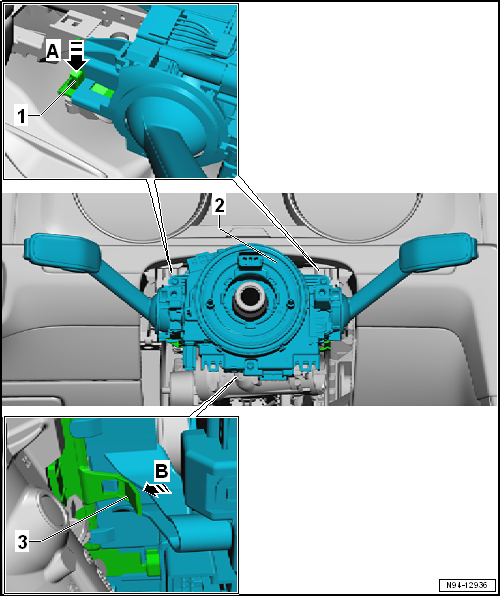

Removing and installing steering column switch module, Valeo

–	Press release button -1- on each side in direction of arrow -A-.

–	Pull off steering column switch module -2- slightly.

–	Release retaining tab -3- in direction of arrow -B-.

–	Pull off steering column switch module -2-.

Installing

Install in the reverse order of removal, observing the following:

–	Before pushing on steering column switch module, ensure the following for steering column electronics control unit -J527--3-:

The “arrows”-1- must align.

Coil connector -2- must be visible through window between “arrows”-4-.

Specified torques

→ Chapter „Assembly overview - steering column switch module“
