Volkswagen Golf Service & Repair Manual: Renewing LSU Lambda probe (6-pin)

Volkswagen Golf Service & Repair Manual / Electrical system, general information / Wiring / Renewing Lambda probe / Renewing LSU Lambda probe (6-pin)

Note

If necessary, replace attachment parts, cable ties or marking rings to match the uniform probe to the defective probe as specified.

The wires should not be crimped or cut as otherwise the function of the Lambda probe will be impaired.

–	Remove the old Lambda probe.

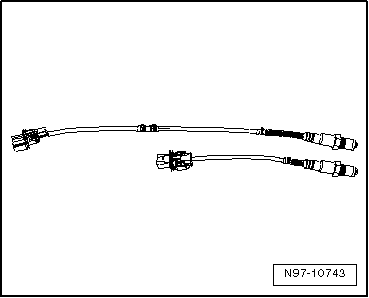

–	Place both Lambda probes next to each other so that the sensor housings are at the same height.

Renewing LSU Lambda probe (6-pin)

–	Tie back any excess in the uniform probe length (approx. 50 - 250 mm) to the size of the defective probe and secure with cable ties -1-.

–	Install the new Lambda probe in the vehicle.

Renewing LSU Lambda probe (6-pin)
