Volkswagen Golf Service & Repair Manual: Masking areas, rear body

Volkswagen Golf Service & Repair Manual / Vechile- specific paint information / Masking areas / Masking areas, rear body

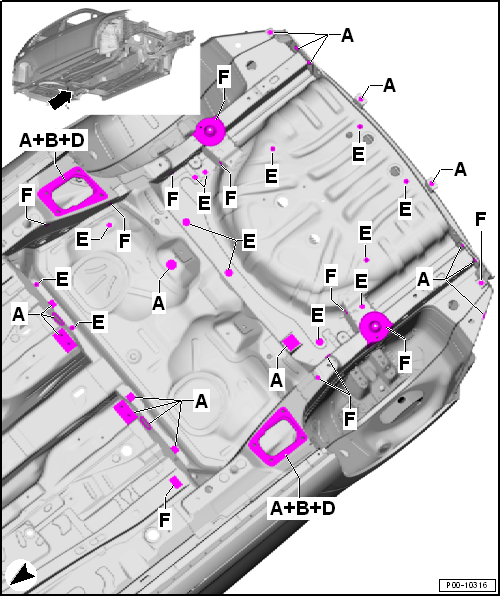

Masking areas, rear underbody

Masking areas, rear body

A -  No sealant on threads or contact surfaces.
B -  Threads waxed
D -  Threads free of surfacer and top-coat paint (joint surface may be painted)
E -  Threads free of accumulated PVC.
F -  Contact surface free of accumulated PVC.

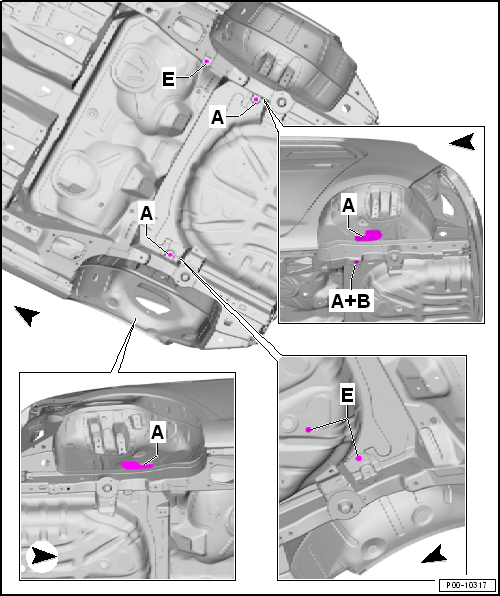

Masking areas, rear underbody, vehicles with multi-link suspension

Masking areas, rear body

A -  No sealant on threads or contact surfaces.
B -  Threads waxed
E -  Threads free of accumulated PVC.

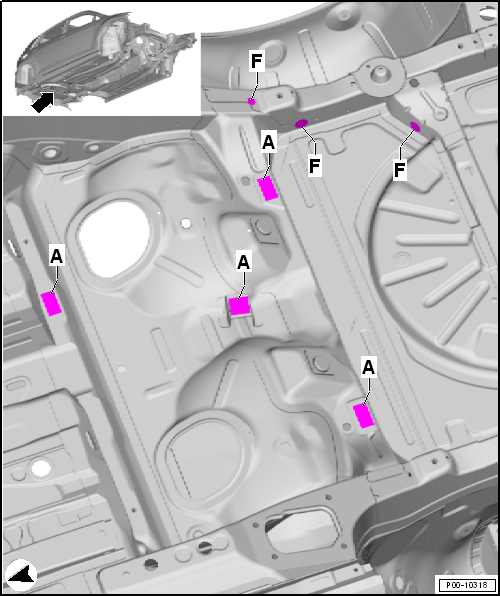

Masking areas, rear underbody, 4-Motion vehicles

Masking areas, rear body

A -  No sealant on threads or contact surfaces.
F -  Contact surface free of accumulated PVC.

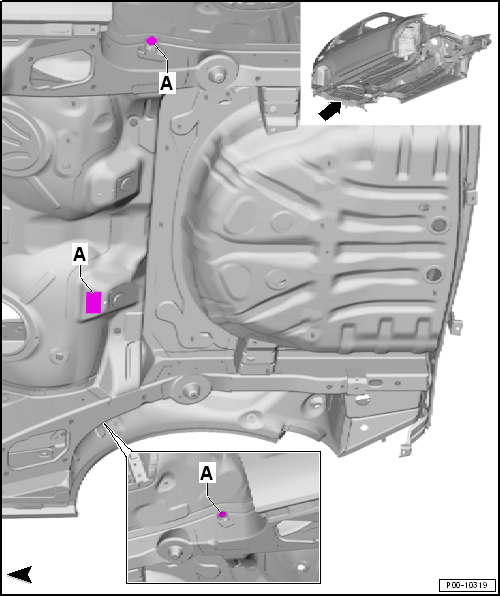

Masking areas, rear underbody, vehicles with torsion beam rear suspension

Masking areas, rear body

A -  No sealant on threads or contact surfaces.

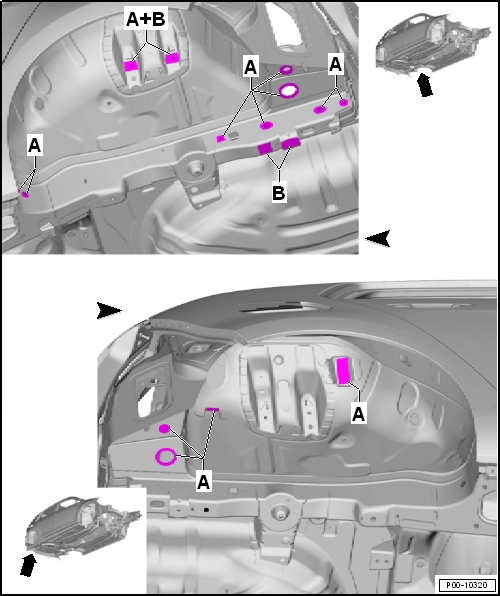

Masking areas in rear left and right wheel housing liner

Masking areas, rear body

A -  No sealant on threads or contact surfaces.
B -  Threads waxed

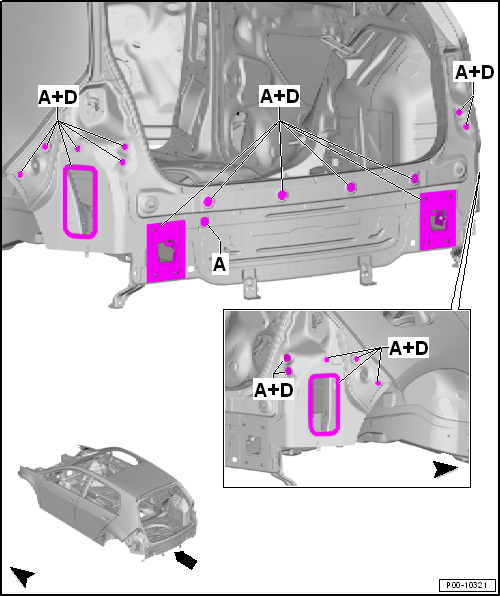

Masking areas, rear

Masking areas, rear body

A -  No sealant on threads or contact surfaces.
D -  Threads free of surfacer and top-coat paint (joint surface may be painted)

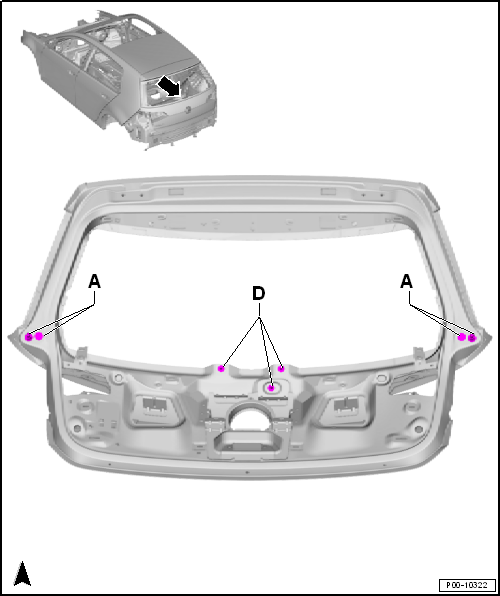

Masking areas, rear lid

Masking areas, rear body

A -  No sealant on threads or contact surfaces.
D -  Threads free of surfacer and top-coat paint (joint surface may be painted)

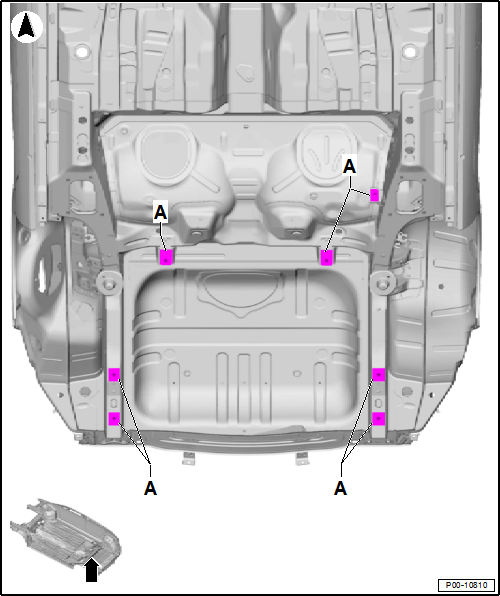

Masking areas, body of CNG-powered vehicles

Masking areas, rear underbody of CNG-powered vehicles

Masking areas, body of CNG-powered vehicles

A -  No sealant on thread or contact surfaces
