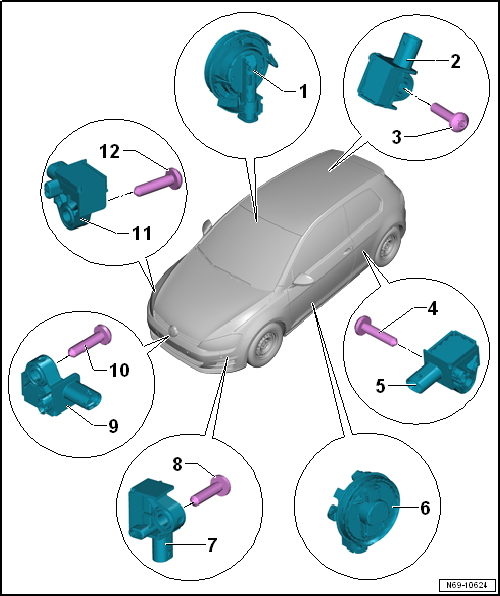

Overview of fitting locations - airbag crash sensors

1 -	Side airbag crash sensor, front passenger side -G180-

Location: in door
Safety precautions when handling crash sensors (pressure sensors) for front side airbags → Chapter
Removing and installing → Chapter

2 -	Rear side airbag crash sensor, front passenger side -G257-

Fitting location: beneath wheel housing trim
Removing and installing → Chapter

3 -

Bolt

9 Nm

4 -

Bolt

9 Nm

5 -	Rear side airbag crash sensor, driver side -G256-

Fitting location: beneath wheel housing trim
Removing and installing → Chapter

6 -	Side airbag crash sensor, driver side -G179-

Location: in door
Safety precautions when handling crash sensors (pressure sensors) for front side airbags → Chapter
Removing and installing → Chapter

7 -	Front airbag crash sensor, driver side -G283-

Only installed in vehicles which are initially registered in the USA or Canada

8 -

Bolt

Only installed in vehicles which are initially registered in the USA or Canada.
9 Nm

9 -	Crash sensor for front airbag -G190-

Fitting location: on lock carrier in centre of vehicle.
Removing and installing → Chapter

10 -

Bolt

Only installed in vehicles which are initially registered in the USA or Canada
9 Nm

11 -	Front airbag crash sensor for front passenger side -G284-

Only installed in vehicles which are initially registered in the USA or Canada.

12 -

Bolt

9 Nm
